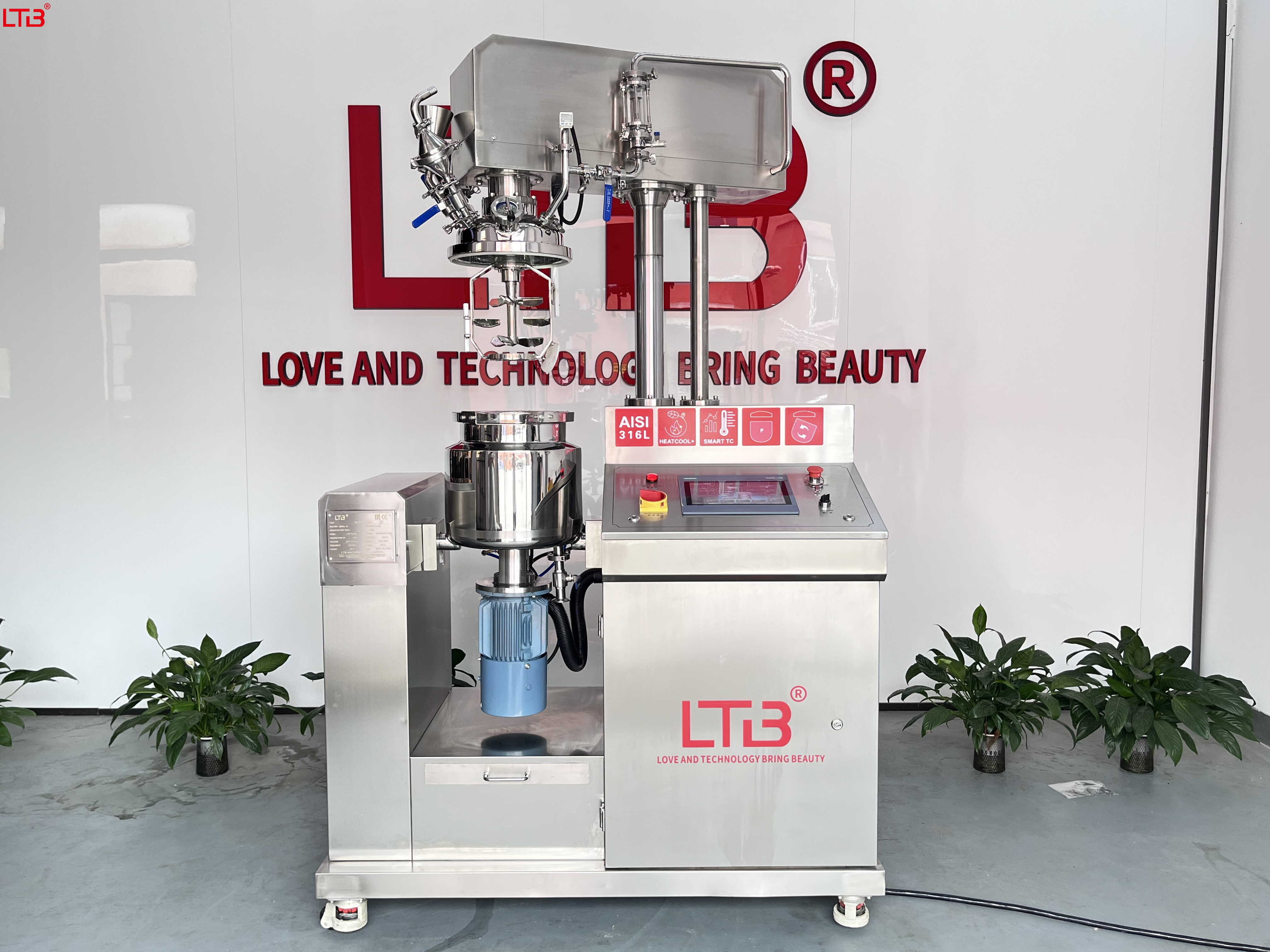

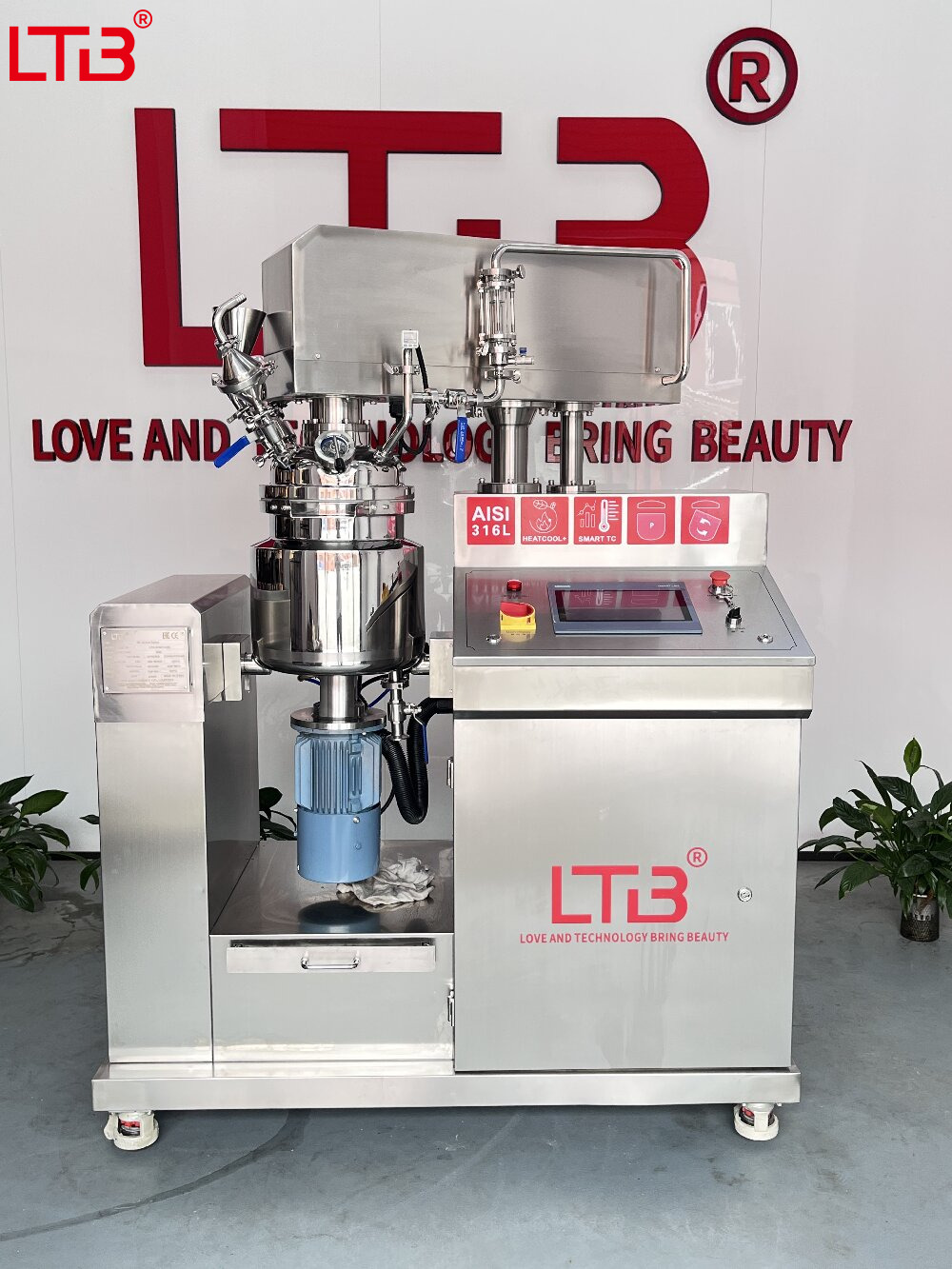

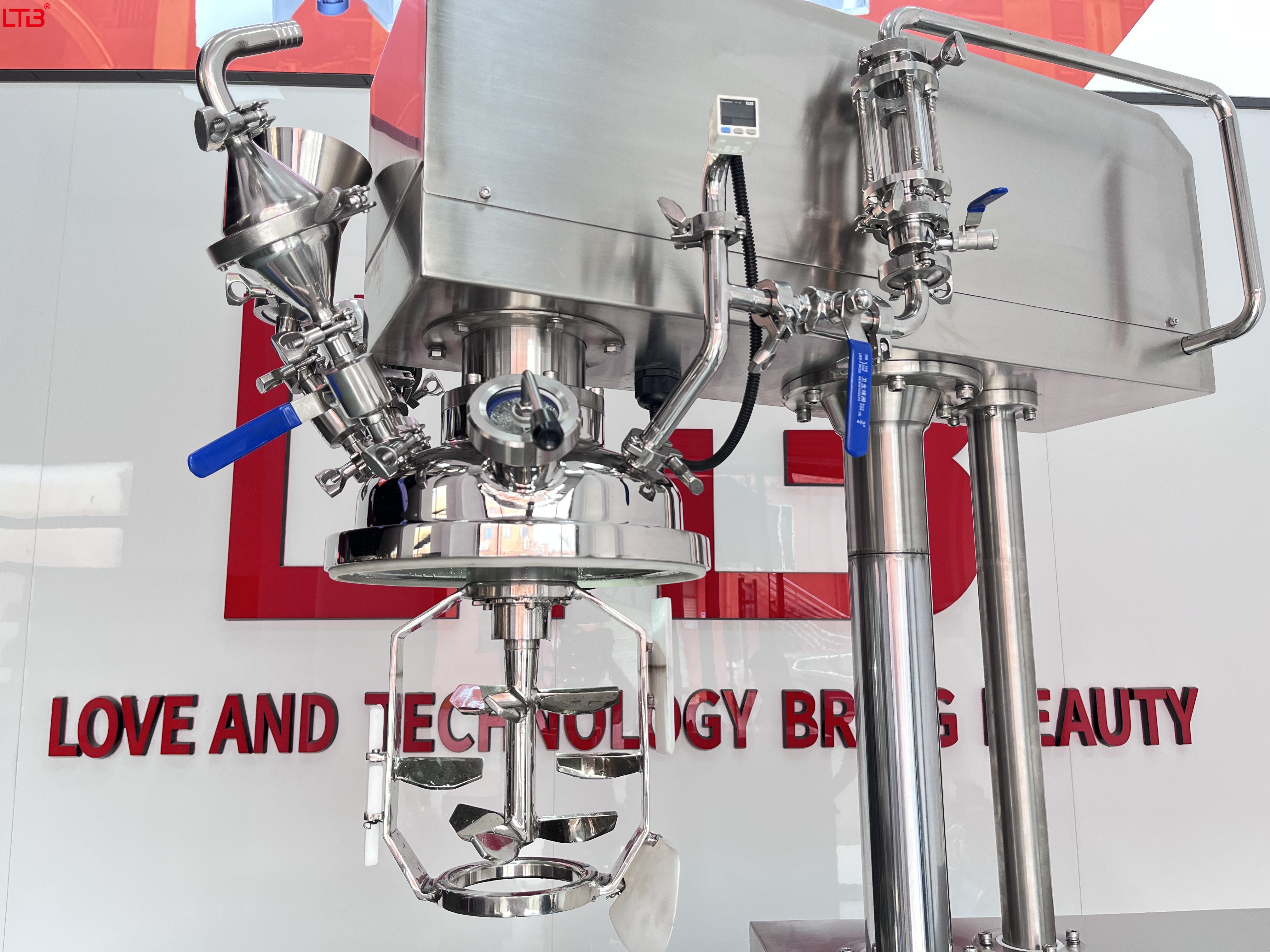

The high speed laboratory vacuum emulsifying mixer is fitted with a hydraulic lifting system for simple operation and convenient maintenance. Equipped with a premium rotor-stator structure and an adjustable speed of 0–5000 rpm, this high-speed homogenizer delivers efficient shearing, dispersion, homogenization and emulsification for liquid, paste and solid-liquid mixed materials. It is widely applied in the emulsification and production of daily chemical and food products, serving as an ideal device for small and medium-scale production.
● High Vacuum Degree
The vacuum system can maintain the vacuum degree inside the tank below ‑0.095 MPa, effectively eliminating air bubbles, reducing material oxidation, delivering fine and smooth texture of finished products and improving product quality.
| Machine Name | High-speed Laboratory Vacuum Emulsifying Mixer | ||||
| Material | All product contact part are made of Stainless Steel 316L | ||||

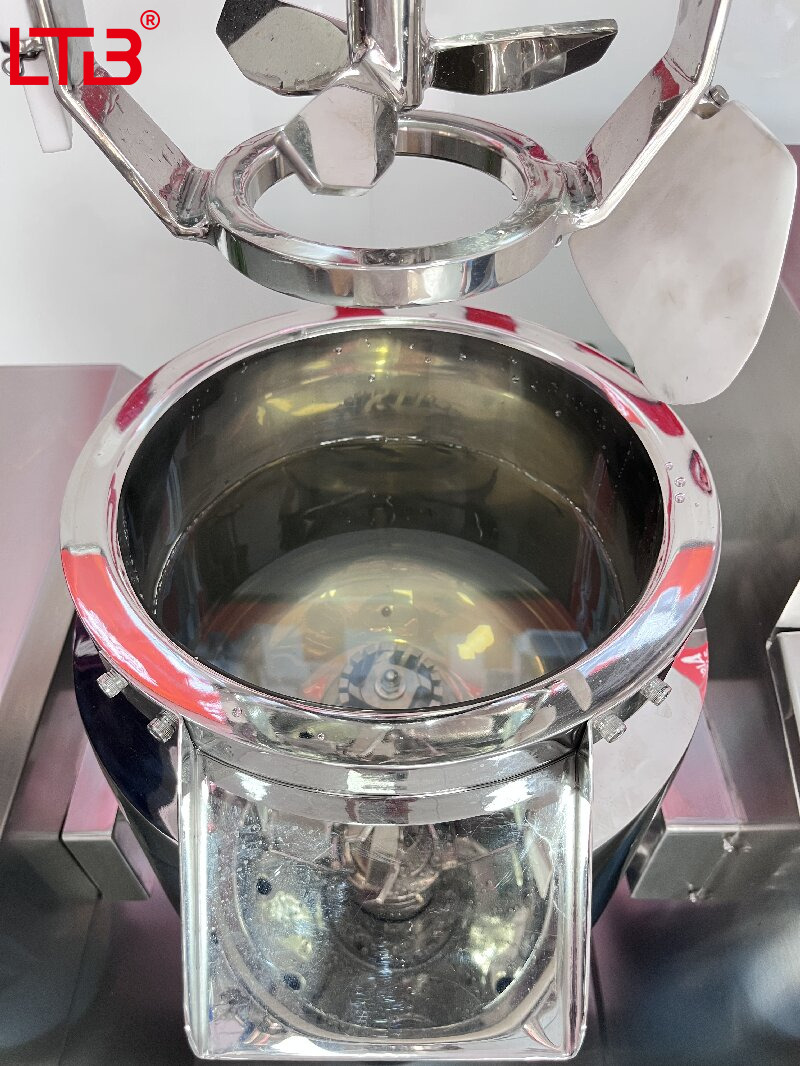

| Tank Design | Three layers, double jackets | ||||
| Heating Methods | Eelctric heating | ||||
| Mixing Design | Bidirectional mixing paddle with Teflon sraper | ||||
| Mixing Speed | 0-63rpm, customizable | ||||
| Mixing Motor | ABB or SIEMENS | ||||
| Homogenizer Design | High shear teeth-shape homogenizer | ||||
| Homogenizer Position | Bottom/upper/inline homogenizer+rotary pump circulation type | ||||
| Homogenizer Speed | 0-5000rpm, customizable | ||||

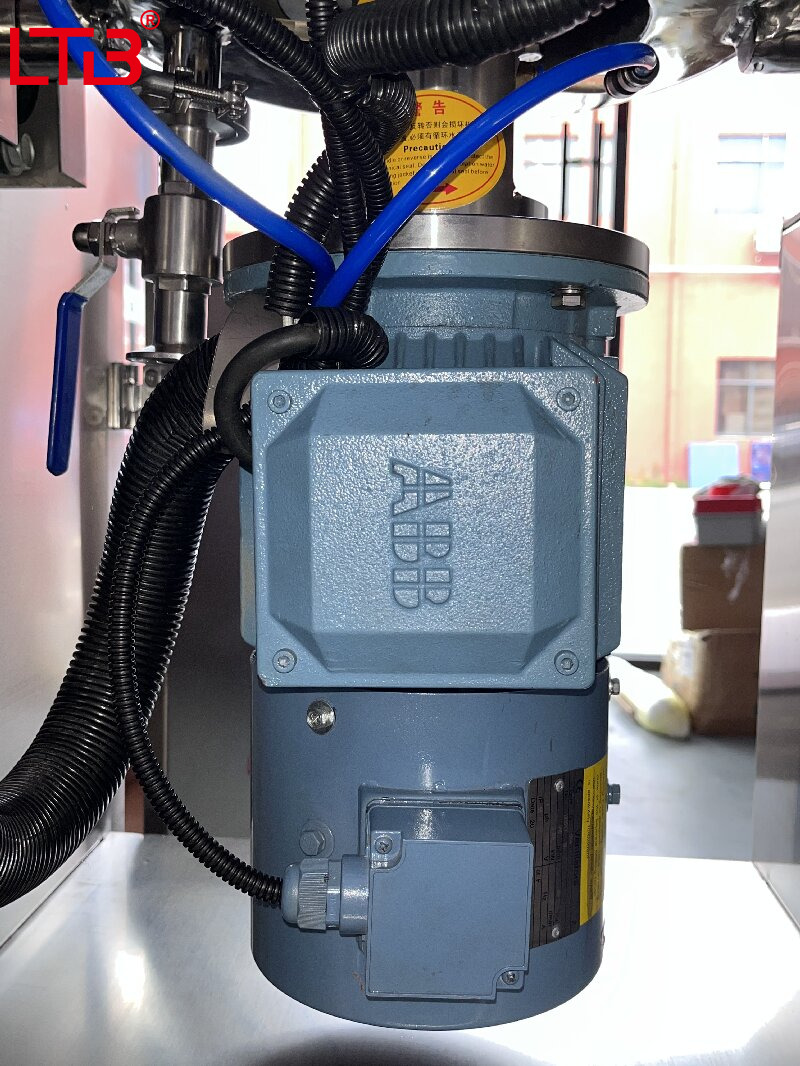

| Homogenizer Motor | ABB or SIEMENS | ||||
| Vacuum Pressure | -0.1Mpa | ||||
| Cover Type | Hydraulic lifting cover | ||||
| Tank Titling | More than 90 degree tank body titling | ||||
| Control Way | SIEMENS PLC control system and touch screen/push button | ||||

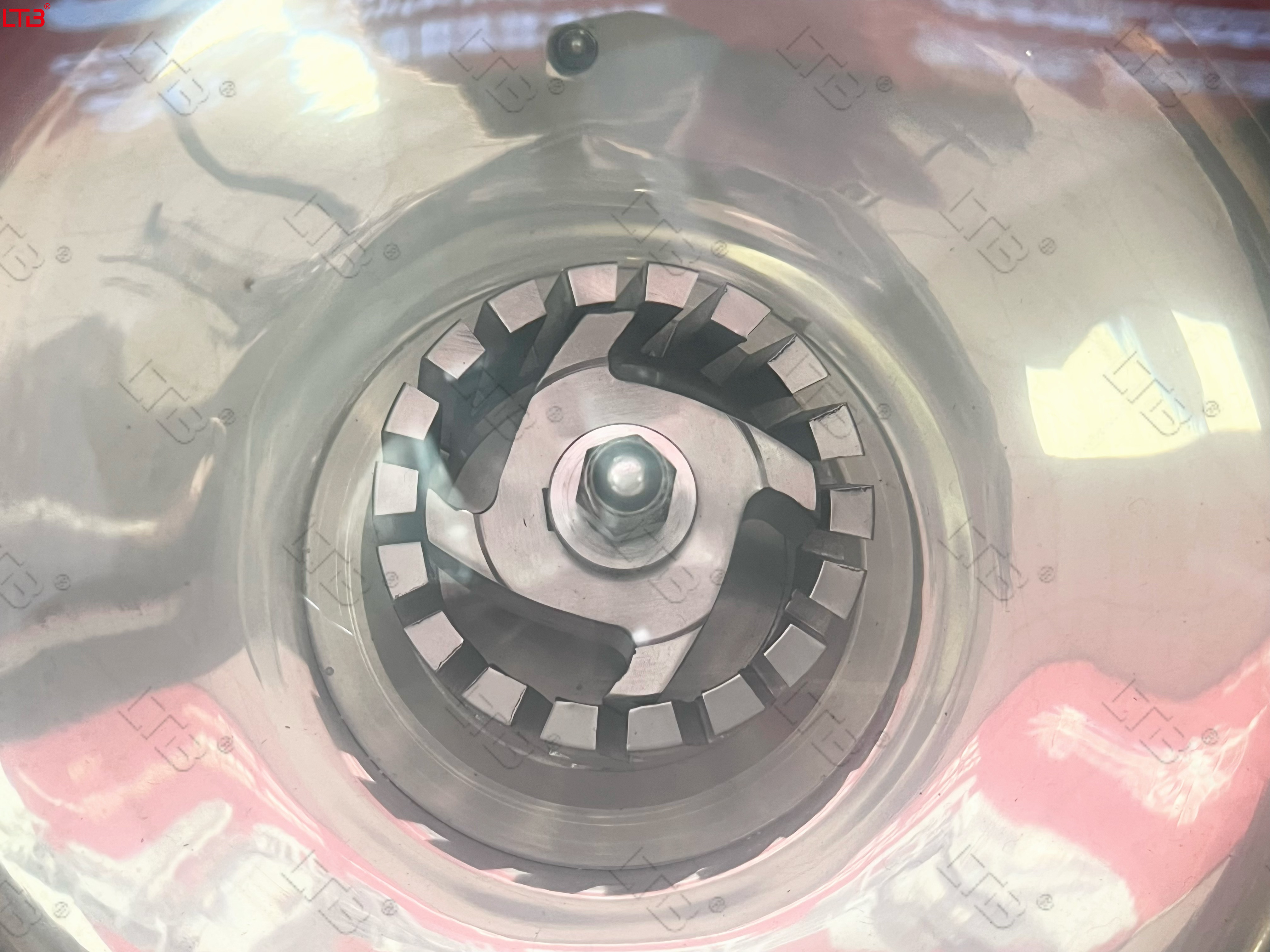

High-speed toothed Homogenizer
High‑speed toothed homogenizer with adjustable speed from 0‑5000 rpm, a high‑shear homogenizing device. Driven by high‑speed rotor‑stator shearing force, it delivers powerful crushing, dispersion and emulsification of materials. It finely reduces material particle size and achieves homogeneous mixing for liquid‑liquid and liquid‑solid phases, widely used in cosmetics, food, pharmaceutical and chemical industries.

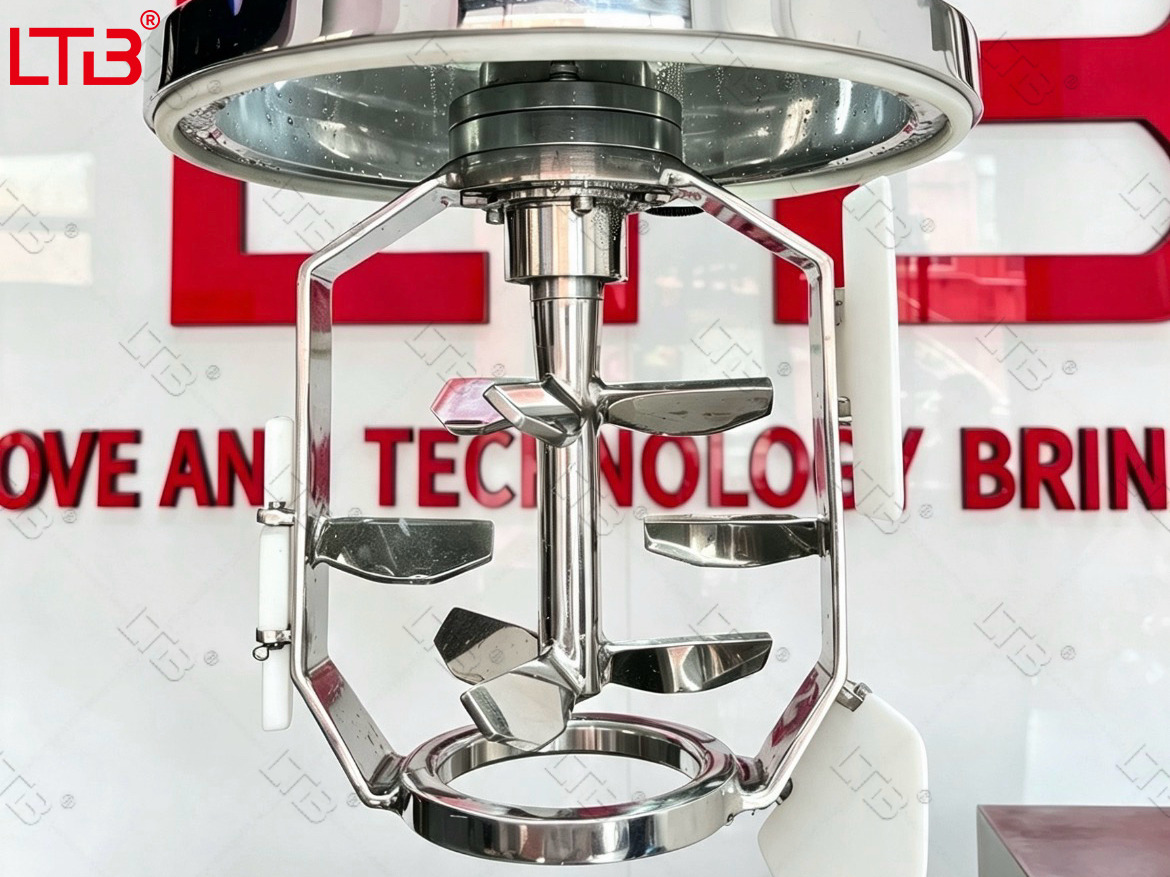

Bidirectional mixing paddle
Bidirectional mixing impeller fitted with PTFE scrapers. The inner impeller rotates counter‑clockwise while the outer impeller runs clockwise, with adjustable speed ranging from 0‑63 rpm to prevent material sedimentation. The PTFE scrapers closely fit the inner tank wall to scrape off adhered materials, eliminate mixing dead zones and guarantee full and homogeneous material mixing.

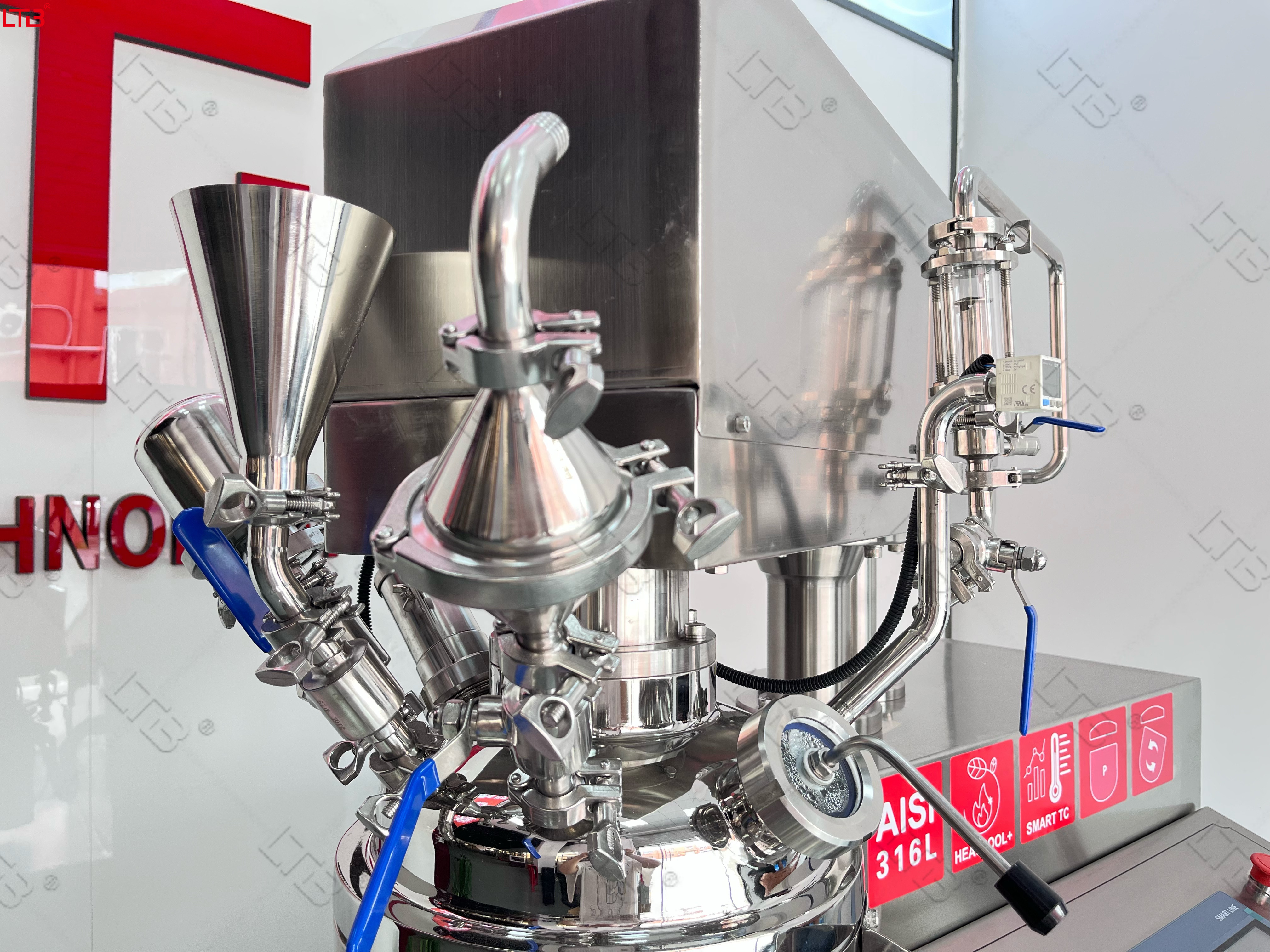

Cover Accessary
There are some accessories installed on the top cover of the vacuum emulsifier, including powder feeding hopper, air filter, viewing window, material filter and pressure gauge. The powder feeding hopper facilitates powder material feeding. The air filter blocks impurities. The viewing window allows operators to clearly observe the whole emulsification process. The material filter screens out foreign particulate impurities, and the pressure gauge monitors tank pressure in real time to ensure stable and safe production.

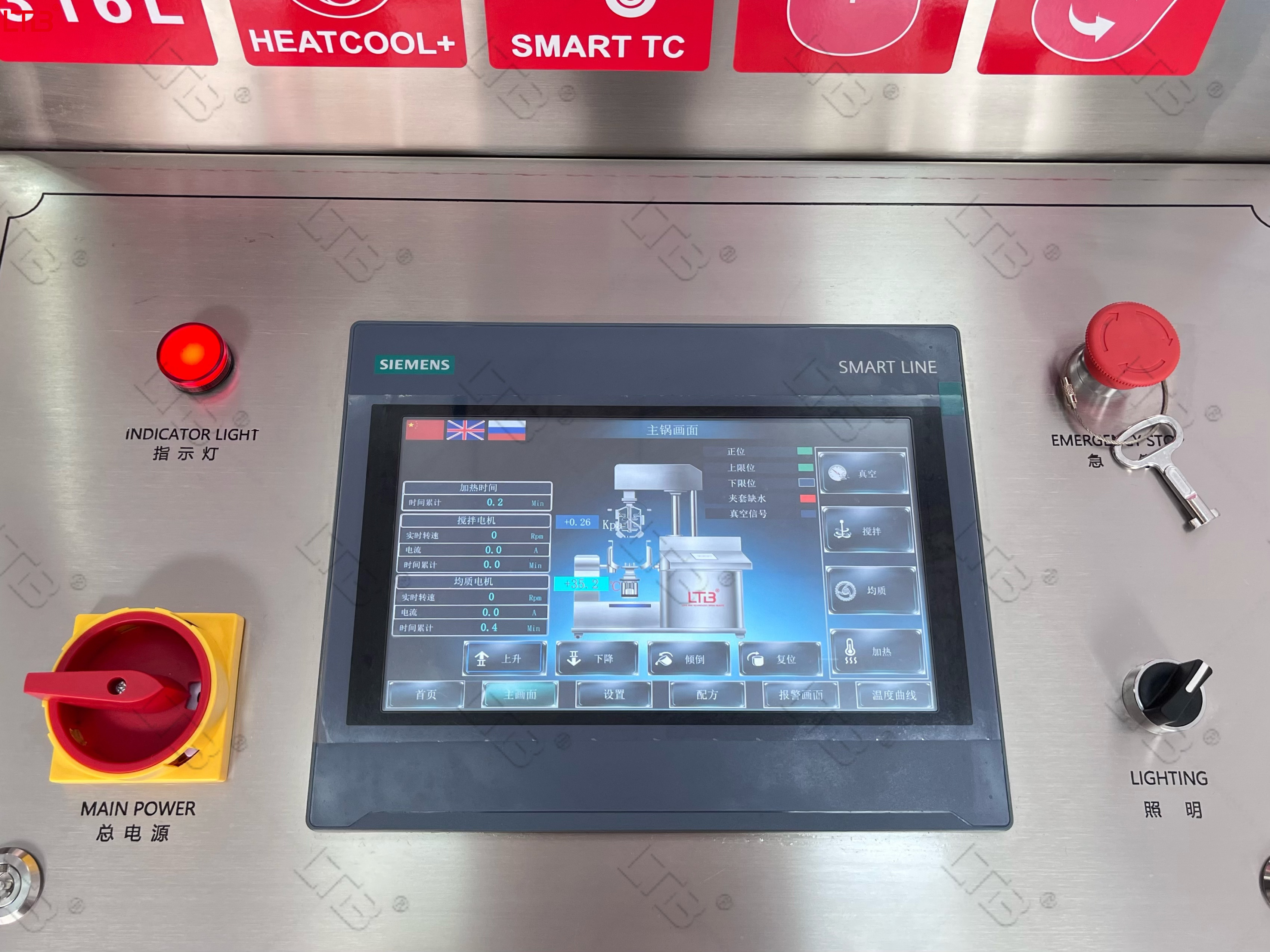

PLC touch screen control
Controlled by PLC touch‑screen system. Operators can set and adjust parameters such as speed, time and vacuum level directly on the touch panel. It features intuitive interface, simple operation and real‑time status display, supporting automatic and manual working modes for stable and convenient equipment control.
Q: What is your company's history and experience in manufacturing cosmetics production machinery?
A: Our company has been in the cosmetics/chemical/pharmaceutical/food machinery manufacturing industry for more than 26 years. We've served numerous clients globally, providing customized solutions for various production scales, from small - batch handmade cosmetics to large - scale industrial production.
Q: Where are your manufacturing facilities located?
A: Our main manufacturing facilities are situated in Guangzhou and Jiangsu Province, China.
Product - Related
Q: What materials and industries is the machine suitable for?
A: It is widely applicable for cosmetics, food, pharmaceutical and fine chemical industries. It can perfectly handle oil-in-water, water-in-oil systems and medium & high-viscosity materials to complete emulsification and homogenization.
Q: How do I ensure the quality of the products produced by your machines?
A: Equipped with premium configurations including 0-5000rpm adjustable high-speed homogenization and a stable vacuum system of -0.095MPa, the machine achieves full and uniform emulsification. It effectively removes air bubbles and prevents material oxidation, maintains stable working conditions, and ensures fine, uniform and consistent product quality for every batch.
Q: What is the material of the machine? Is it easy to clean?
A: All material-contact parts are made of 316L stainless steel with excellent sanitary performance. The smooth inner surface has no sanitary dead corners, supporting quick cleaning and effectively avoiding cross-contamination between batches.
Order and Delivery
Q: What is your minimum order quantity?
A: The minimum order quantity (MOQ) depends on the product. For standard models, the MOQ is usually 1 unit(s). However, for customized products, we can discuss and determine a suitable quantity based on your specific requirements.
Q: How long does it take to deliver the machines after placing an order?
A: For in - stock items, delivery can be arranged within 7 working days. For custom - made machinery, the production and delivery time typically range from 4 weeks to 2 months, depending on the complexity of the design and production process.
Q: What are your payment terms?
A: We usually accept payments through T/T (Telegraphic Transfer). For regular customers, we may also consider other payment methods after negotiation. A 40% deposit is required upon order confirmation, and the balance is due before shipment.
After - sales Service
Q: Do you provide installation and training services?
A: Yes, we offer on - site installation and training services for our customers. Our technicians will ensure that the machines are properly installed and operational. They will also train your staff on machine operation, maintenance, and basic troubleshooting.
Q: What is your warranty policy?
A: Our products come with a standard warranty of 1 year. During this period, we will repair or replace any defective parts free of charge, excluding damages caused by improper use or force majeure. We also provide long - term technical support and supply of spare parts.
