PRODUCTS DESCRIPTION
Description
Advantages
Technical Parameters
FAQ
● Premium Labeling Quality
| Name | Automatic Round Bottle Labeling Machine | ||||
| Voltage | 220V/50Hz (Customized) | ||||
| Power | 1.5KW | ||||
| Production capacity | 20-40pcs/min(depends on bottle size) | ||||
| Labeling Accuracy | ±1mm | ||||
| Roll inside diameter | φ76mm | ||||
| Roll outside diameter | φ370mm | ||||
| Dimension(L*W*H) | 3000*1500*1750mm | ||||

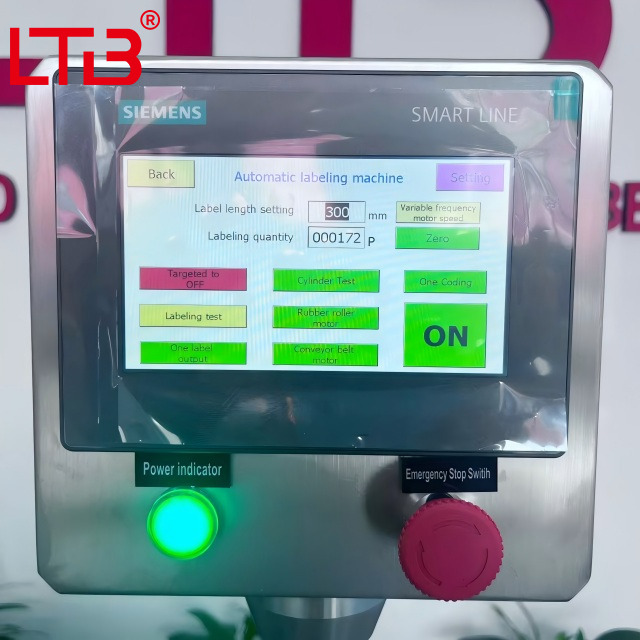

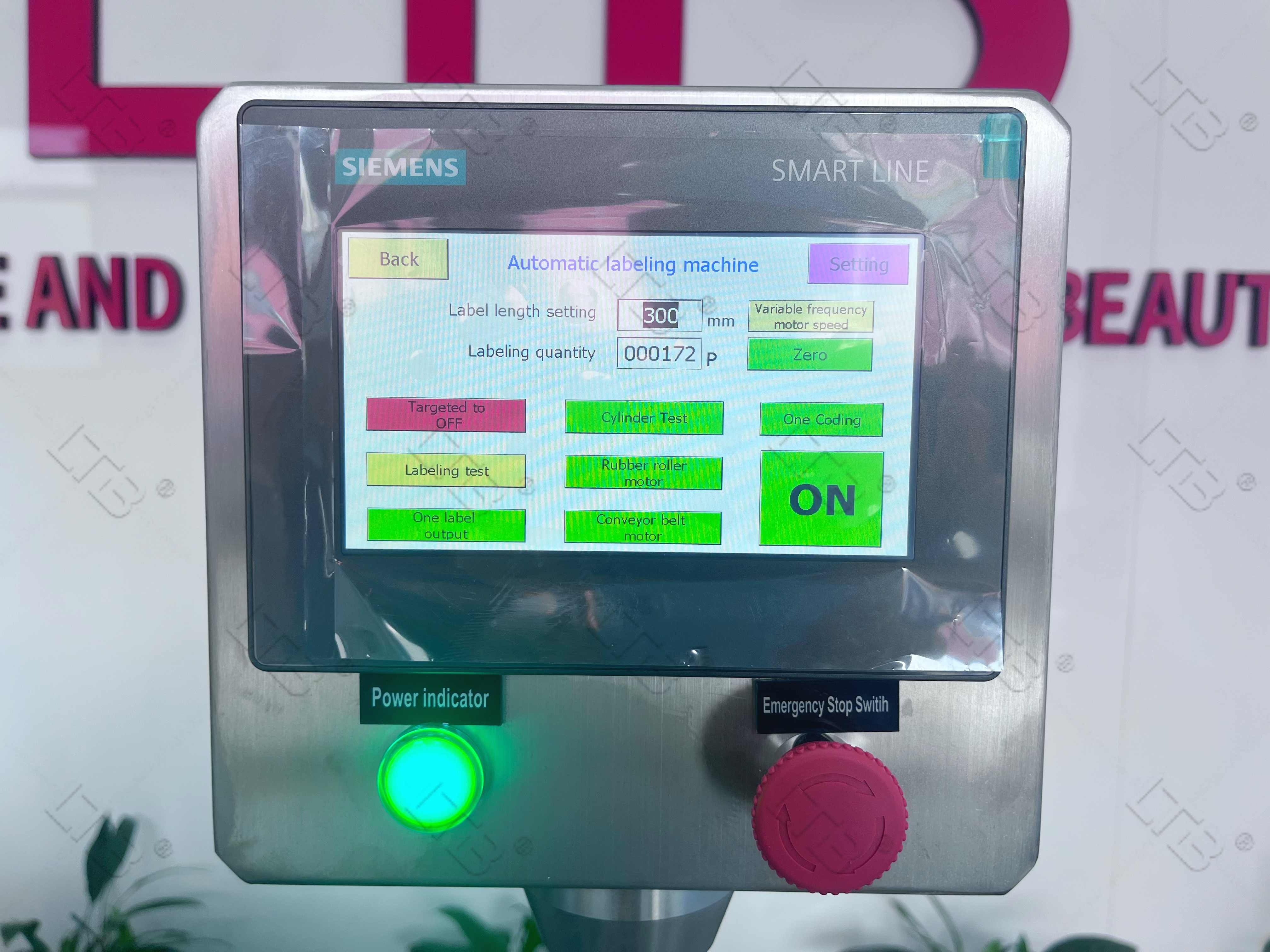

Control Panel
Human‑machine touch control panel enables simple and intuitive operation. All working parameters such as labeling speed and label length can be directly set on screen. Real‑time running data is displayed for easy monitoring and accurate adjustment, helping operators finish parameter setup quickly.

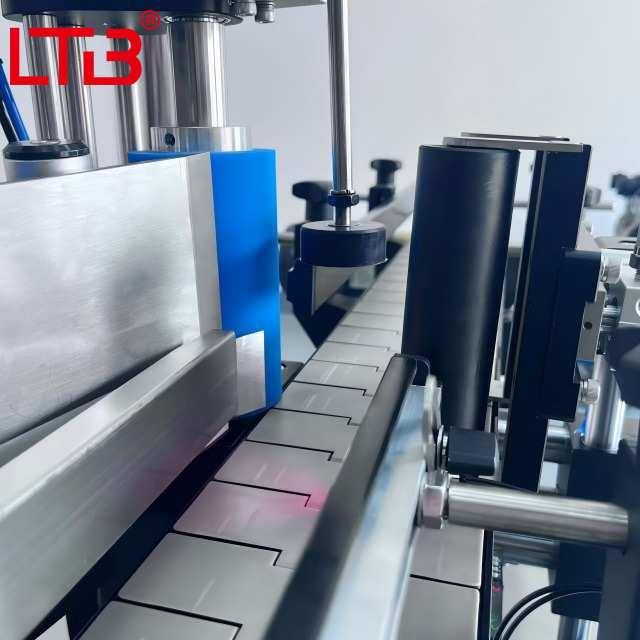

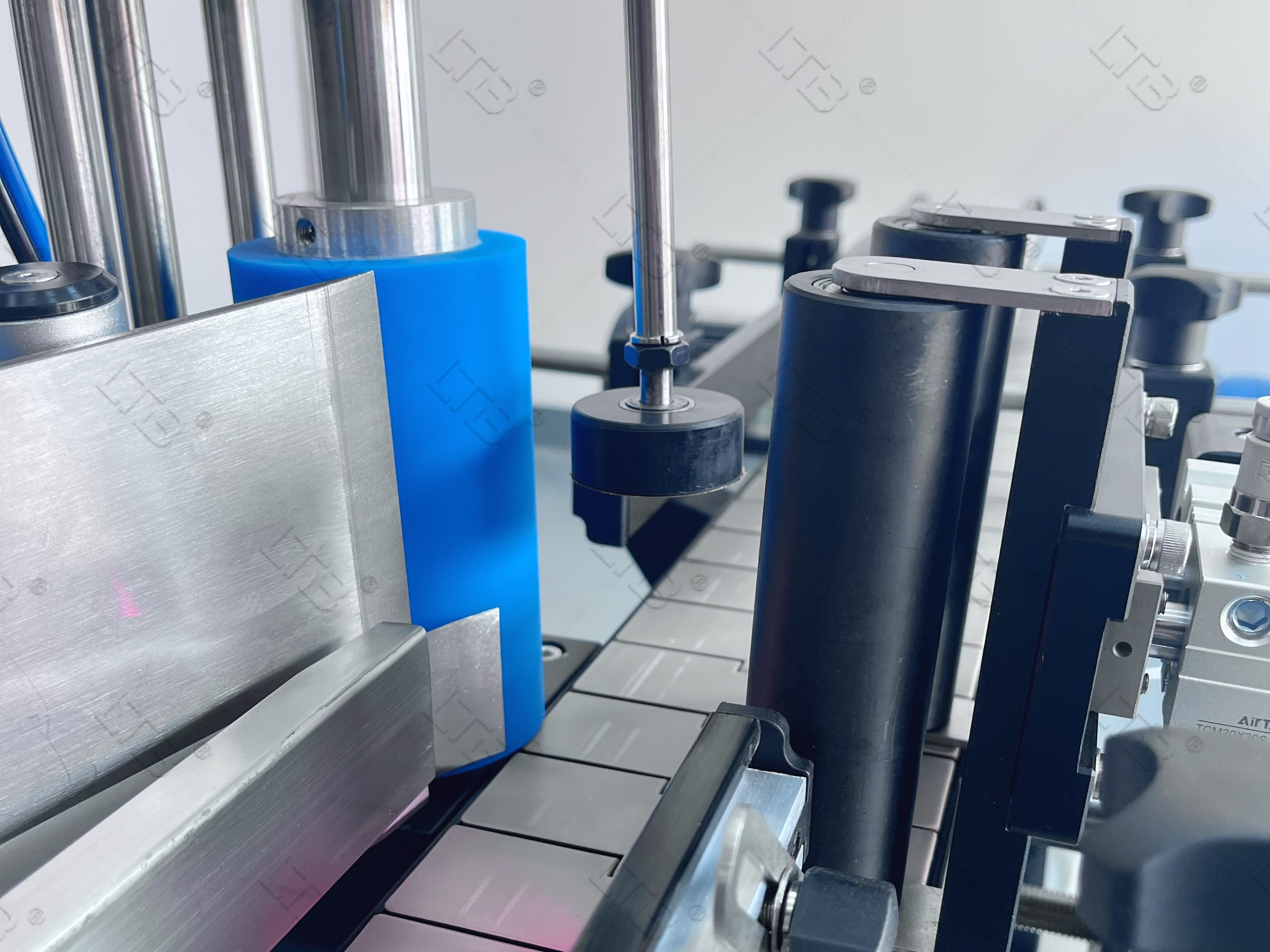

Label‑covering Mechanism
Equipped with high‑elastic silicone rollers, this label‑covering mechanism drives round bottles to rotate steadily. It presses and rolls labels tightly against bottle surfaces to eliminate air bubbles. It supports single‑sided and double‑sided labeling, delivering flat and wrinkle‑free labeling results for round containers.

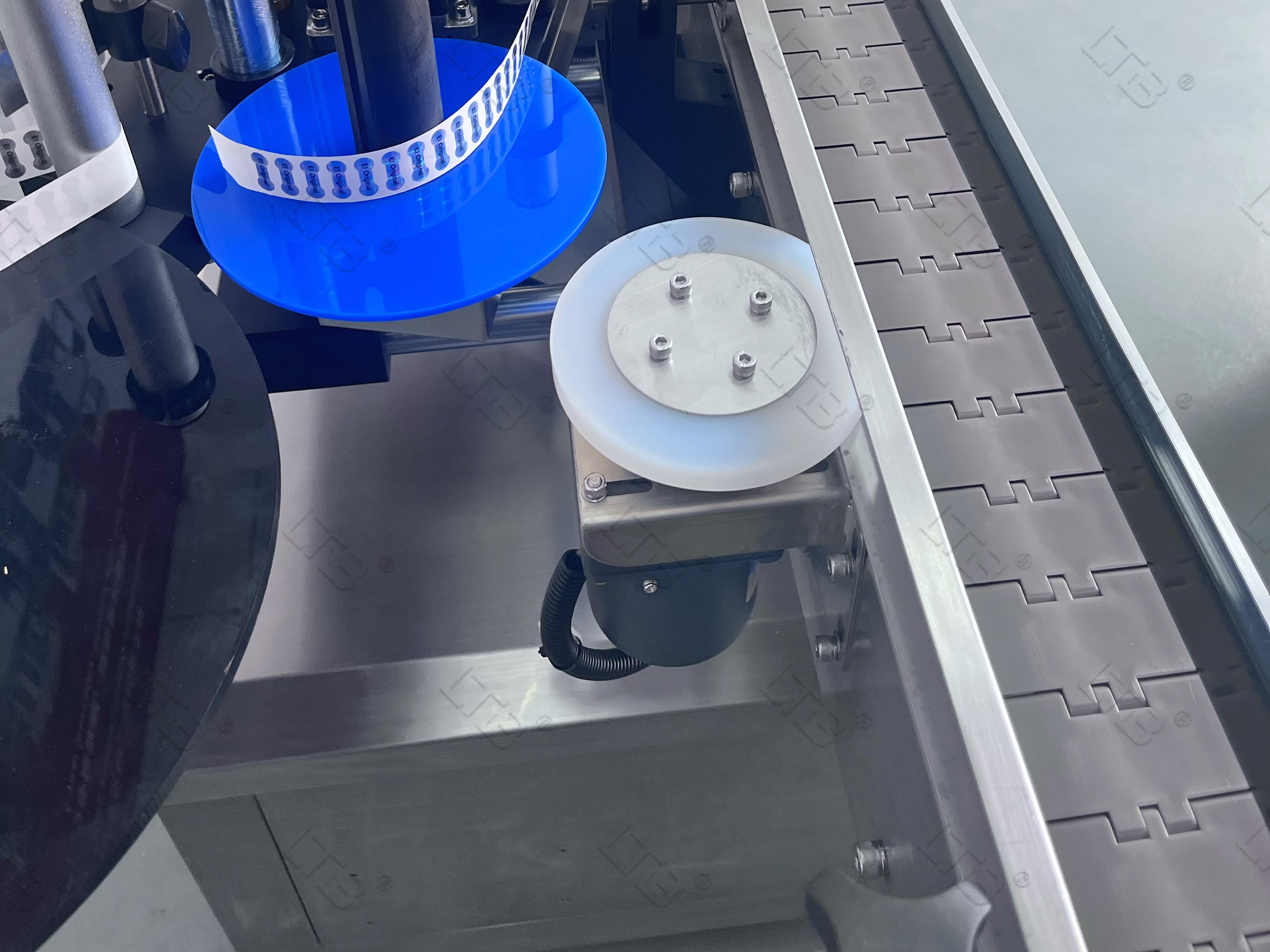

Bottle Separating Device
The bottle‑separating device accurately spaces incoming bottles on the conveyor. It keeps consistent bottle‑to‑bottle distance during production, effectively avoids bottle crowding and overlapping, reduces labeling position errors and improves overall labeling stability.

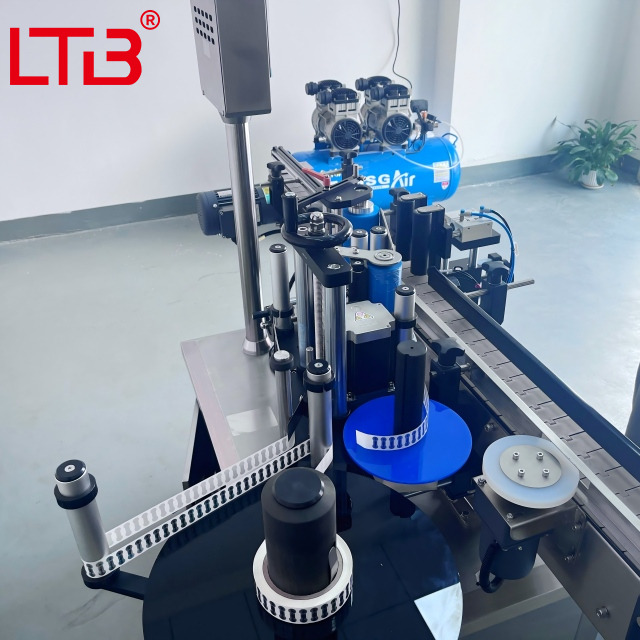

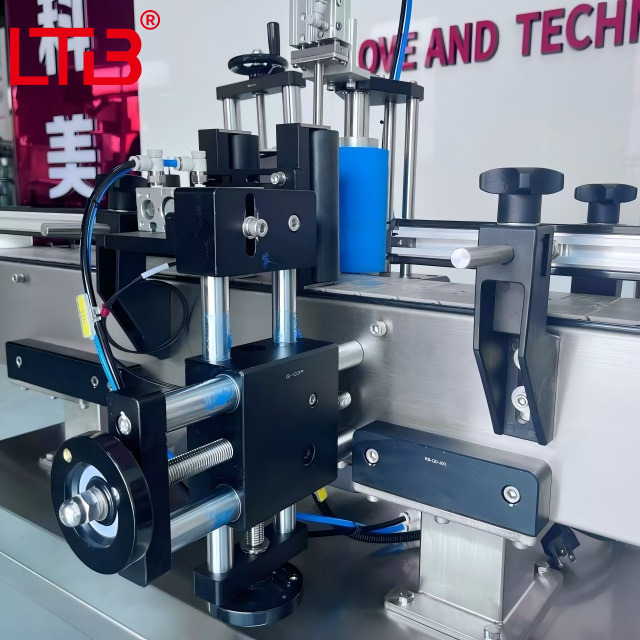

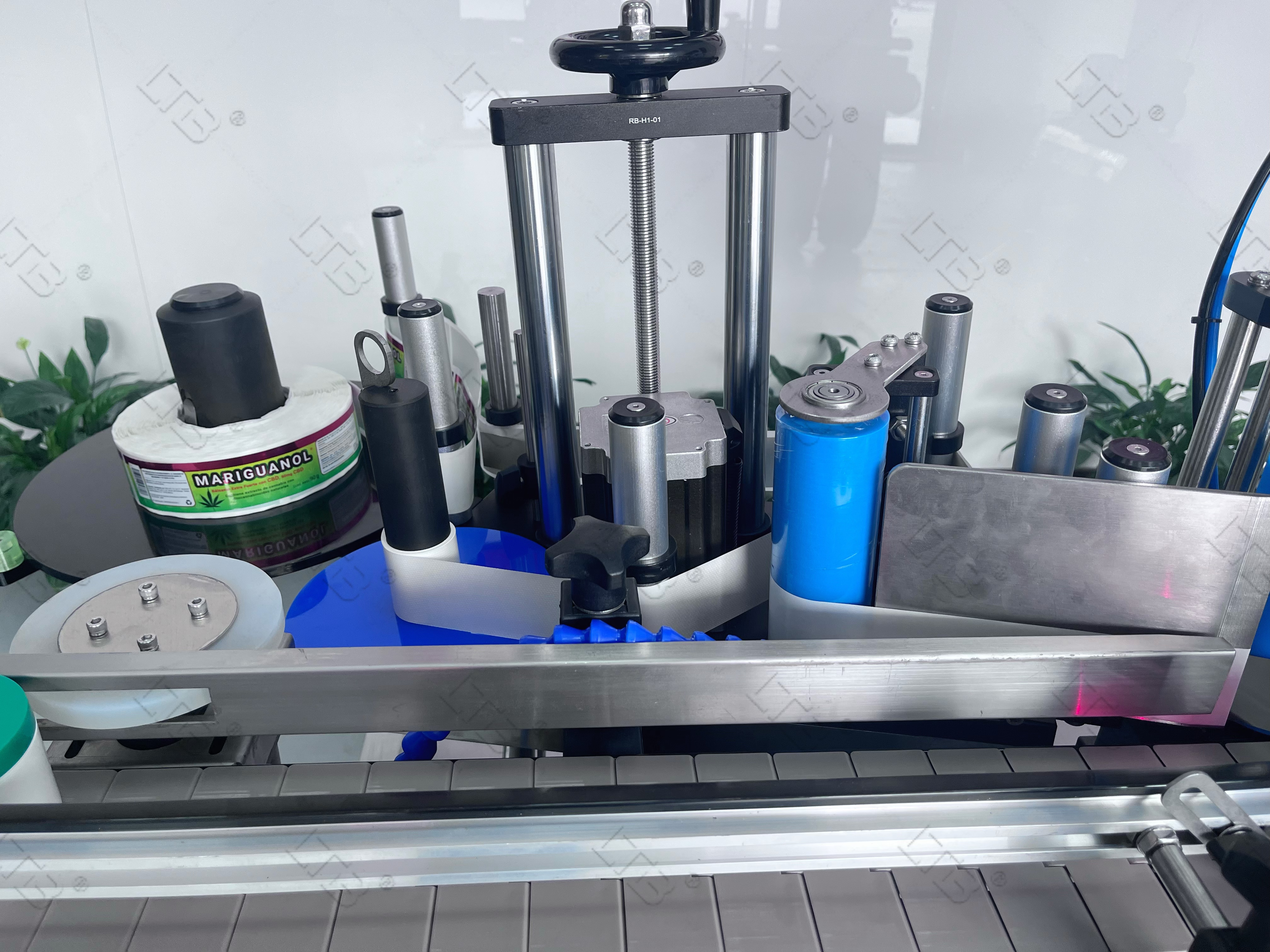

Label-dispensing Mechanism
Professional label‑dispensing mechanism includes label unwinding, guide rollers, peel‑off plate and liner rewinding unit. It feeds labels smoothly and peels labels precisely from backing paper. Height and horizontal position are adjustable to fit various label sizes for different round bottles.
Q: What is your company's history and experience in manufacturing cosmetics production machinery?
A: Our company has been in the cosmetics/chemical/pharmaceutical/food machinery manufacturing industry for more than 26 years. We've served numerous clients globally, providing customized solutions for various production scales, from small - batch handmade cosmetics to large - scale industrial production.
Q: Where are your manufacturing facilities located?
A: Our main manufacturing facilities are situated in Guangzhou and Jiangsu Province, China.
Product - Related
Q: Can it do single‑side and double‑side labeling?
A: Yes. Standard model supports both single‑side and double‑side labeling for round bottles.
Q: Can it work with transparent labels?
A: Yes. We will equip ultrasonic label sensor for transparent labels upon request.
Q: What is the max production capacity?
A: It's around 120 bottles per minute. Actual output depends on bottle diameter and label size.
Order and Delivery
Q: What is your minimum order quantity?
A: The minimum order quantity (MOQ) depends on the product. For standard models, the MOQ is usually 1 unit(s). However, for customized products, we can discuss and determine a suitable quantity based on your specific requirements.
Q: How long does it take to deliver the machines after placing an order?
A: For in‑stock units, shipment can be arranged within 7 working days. For custom‑built machinery, lead time generally falls between 4 weeks and 2 months, subject to project complexity and production scope.
Q: What are your payment terms?
A: We normally accept T/T (Telegraphic Transfer) as our primary payment term. Alternative payment options can be discussed for long‑term clients. A 40% deposit shall be paid once the order is confirmed, with the remaining balance settled prior to shipment.
After - sales Service
Q: Do you provide installation and training services?
A: Yes, we offer on - site installation and training services for our customers. Our technicians will ensure that the machines are properly installed and operational. They will also train your staff on machine operation, maintenance, and basic troubleshooting.
Q: What is your warranty policy?
A: Our products come with a standard warranty of 1 year. During this period, we will repair or replace any defective parts free of charge, excluding damages caused by improper use or force majeure. We also provide long - term technical support and supply of spare parts.
