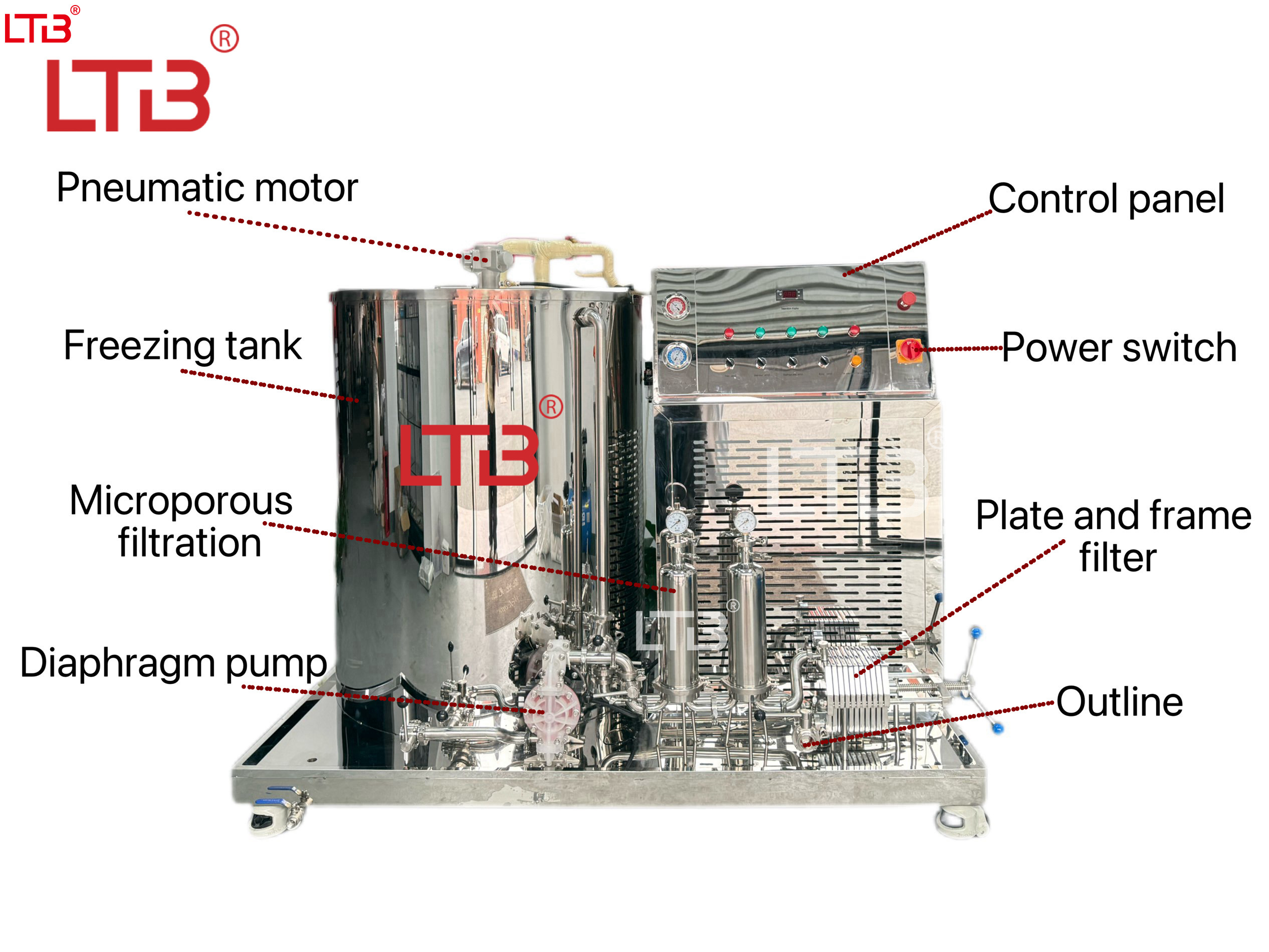

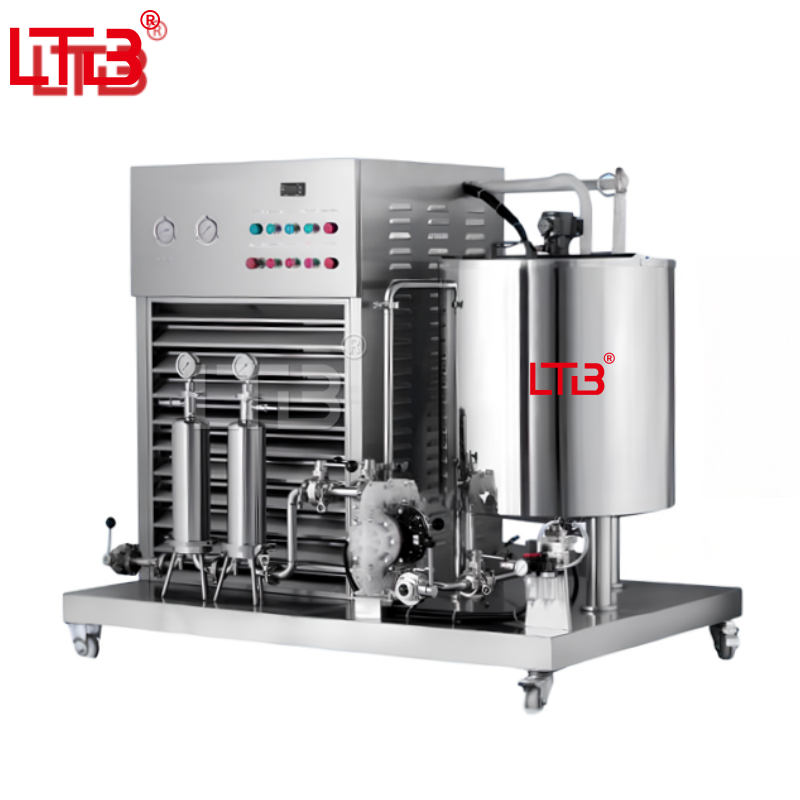

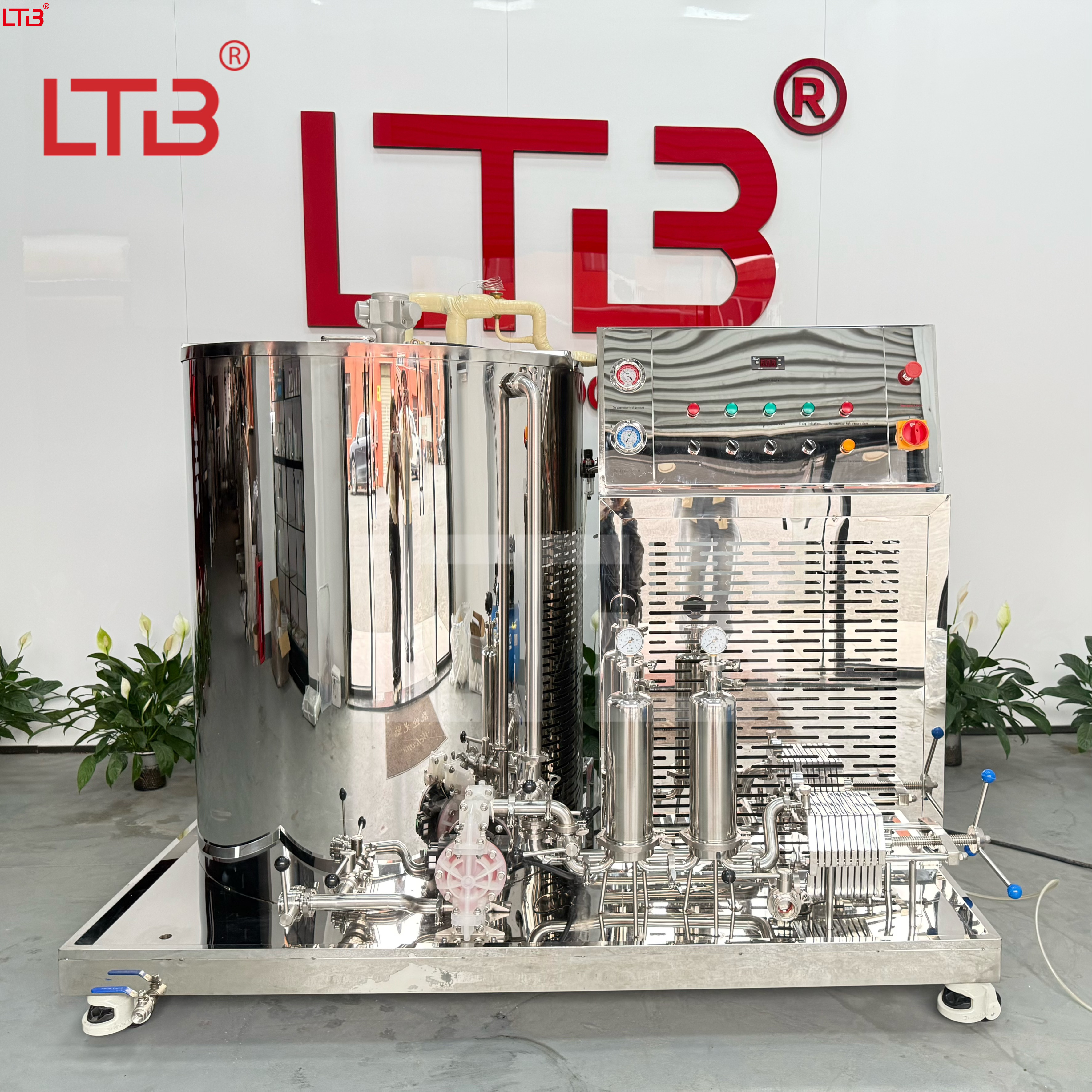

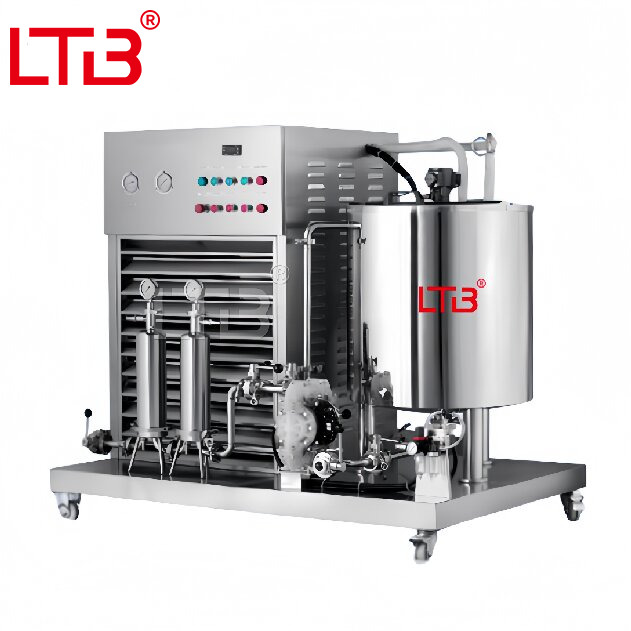

This is an integrated production unit dedicated to perfume manufacturing, which integrates stirring & mixing, low‑temperature cooling and precision filtration functions. It consists of a cooling reactor, plate‑and‑frame filter, microfiltration system, pneumatic diaphragm pump and electric control panel, driven by a pneumatic motor with a supporting control system, specially designed for the production process of alcohol‑based perfume.
| Model | 3p | 5p | 10p | ||
| Capacity | 200L | 500L | 1000L | ||
| Material | All product contact part are made of Stainless Steel 316L | ||||
| Power | 2.2KW | 7.5KW | 11KW | ||
| Air source pressure | 0.5-0.6Mpa | ||||
| Filter pressure | 0.2Mpa | ||||
| Refrigeration temperature | -5℃- -15℃ | ||||
| Level 1 filter | 1.0μm | ||||
| Level 2 filter | 0.2μm | ||||
| Voltage | 380V/50HZ | ||||

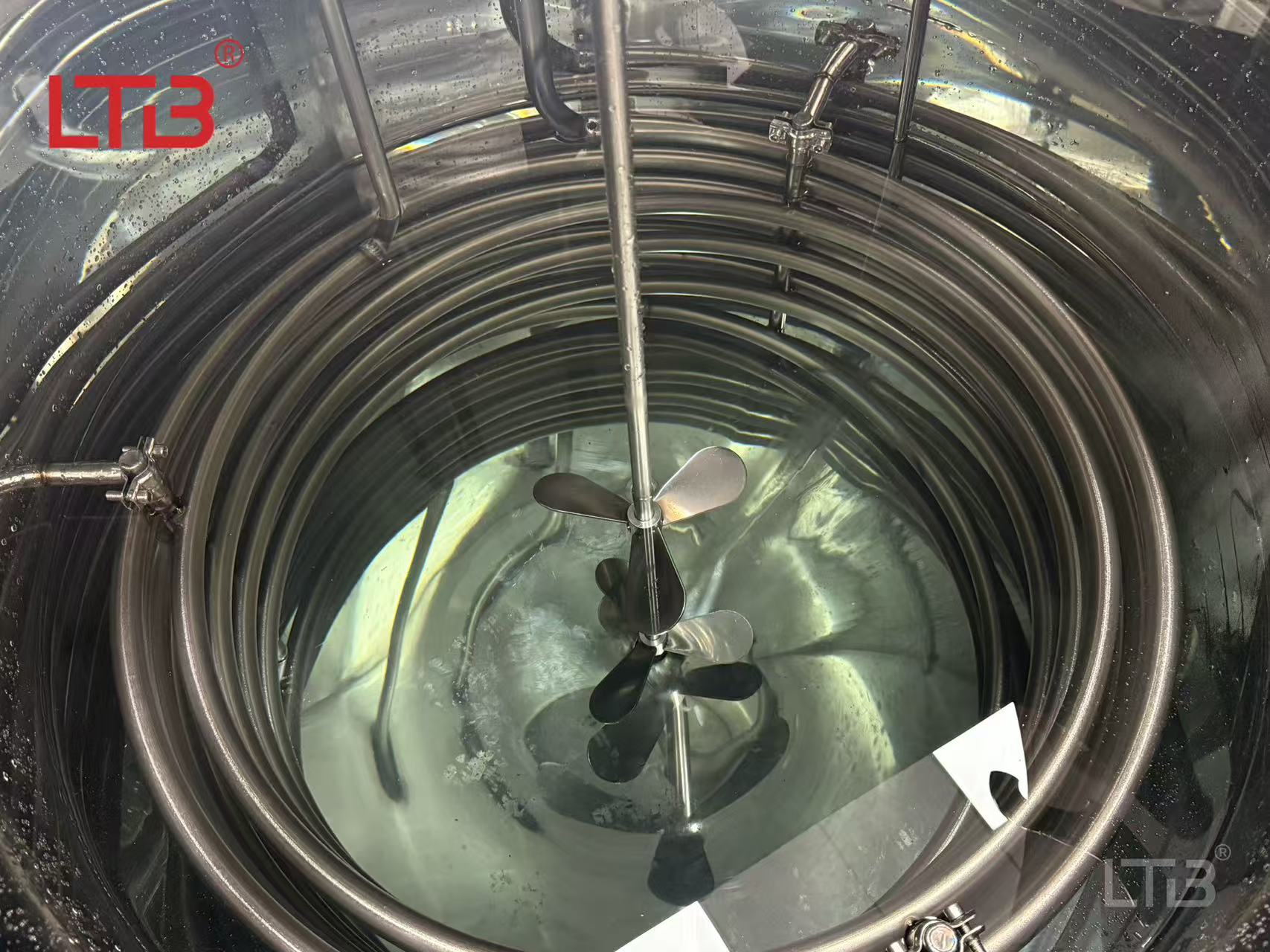

Cooling Tube and Stirring Paddle
- The cooling tube delivers fast and even cooling for perfume liquid, effectively reducing essence volatilization and keeping the fragrance lasting and stable.
- The stirring paddle achieves full and homogeneous blending of perfume raw materials. It maintains balanced temperature inside the tank, facilitates impurity separation, and ensures consistent fragrance quality.

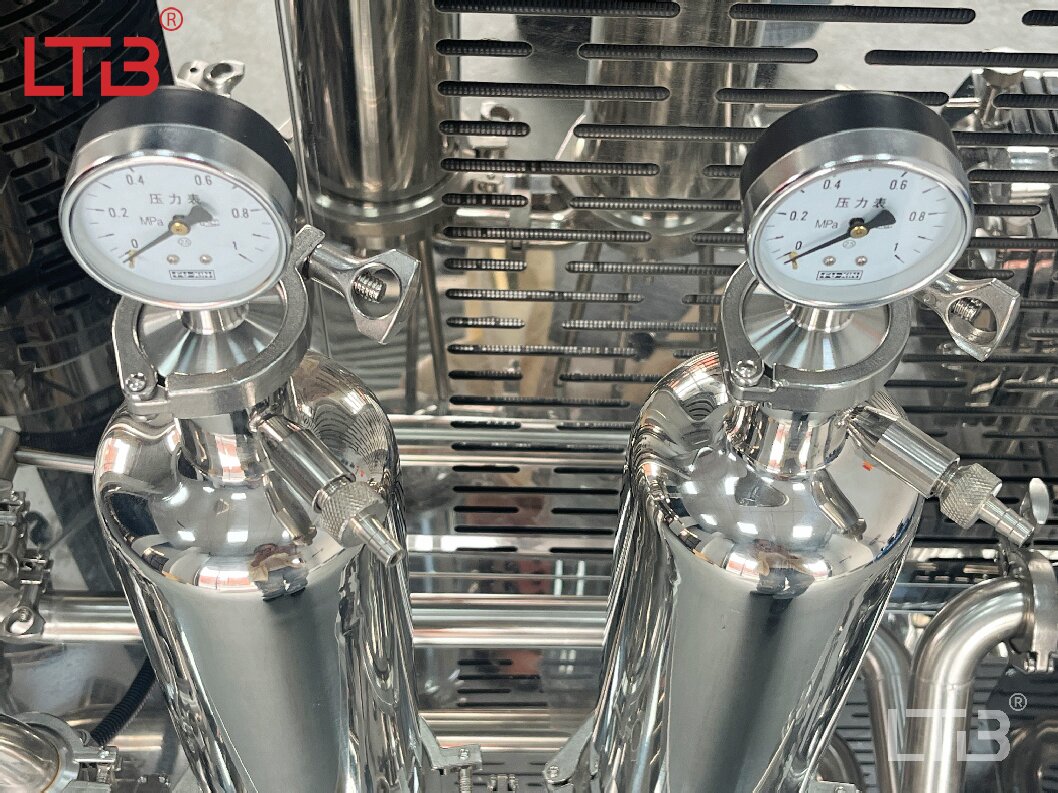

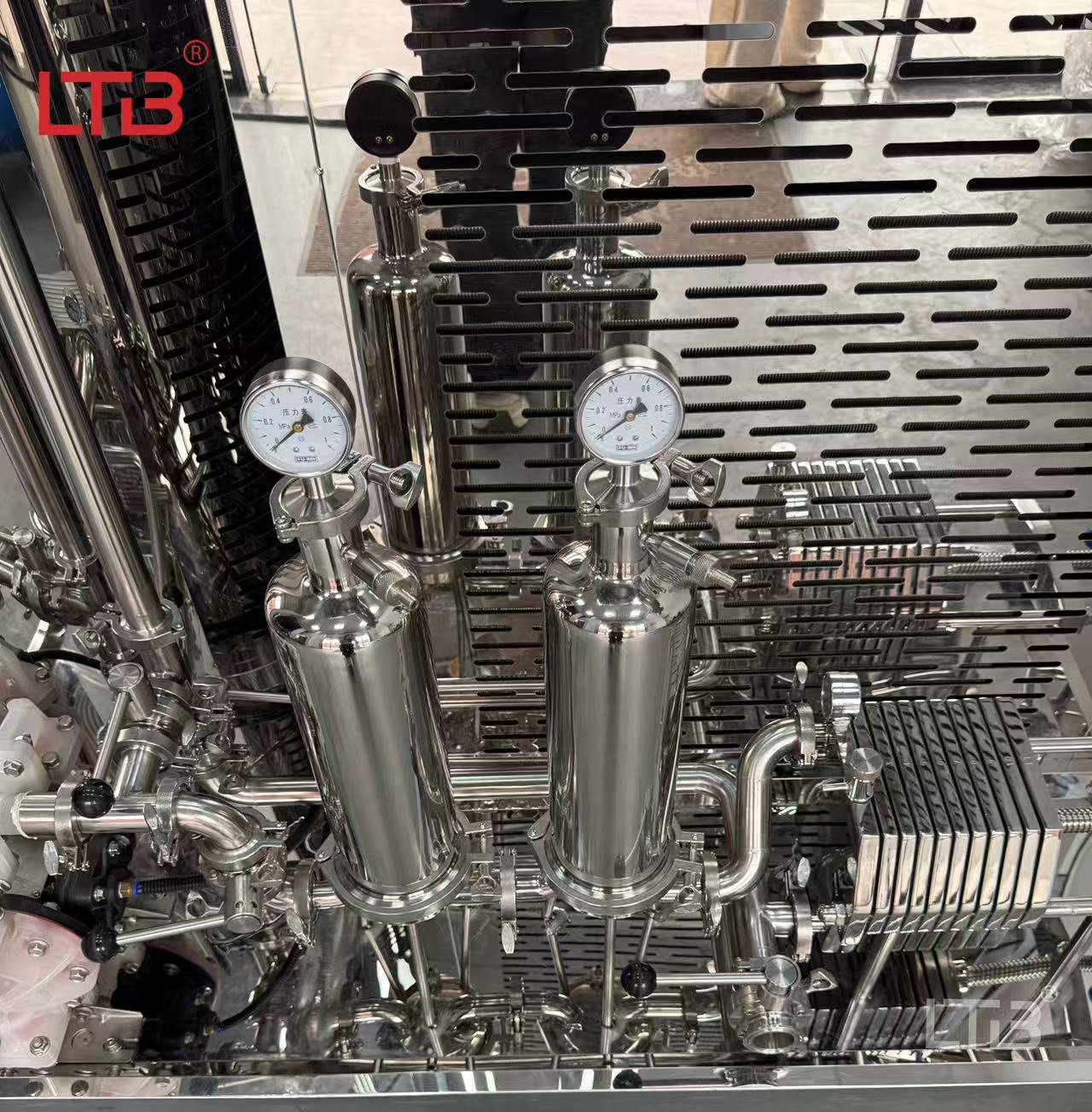

Microporous Filtration,

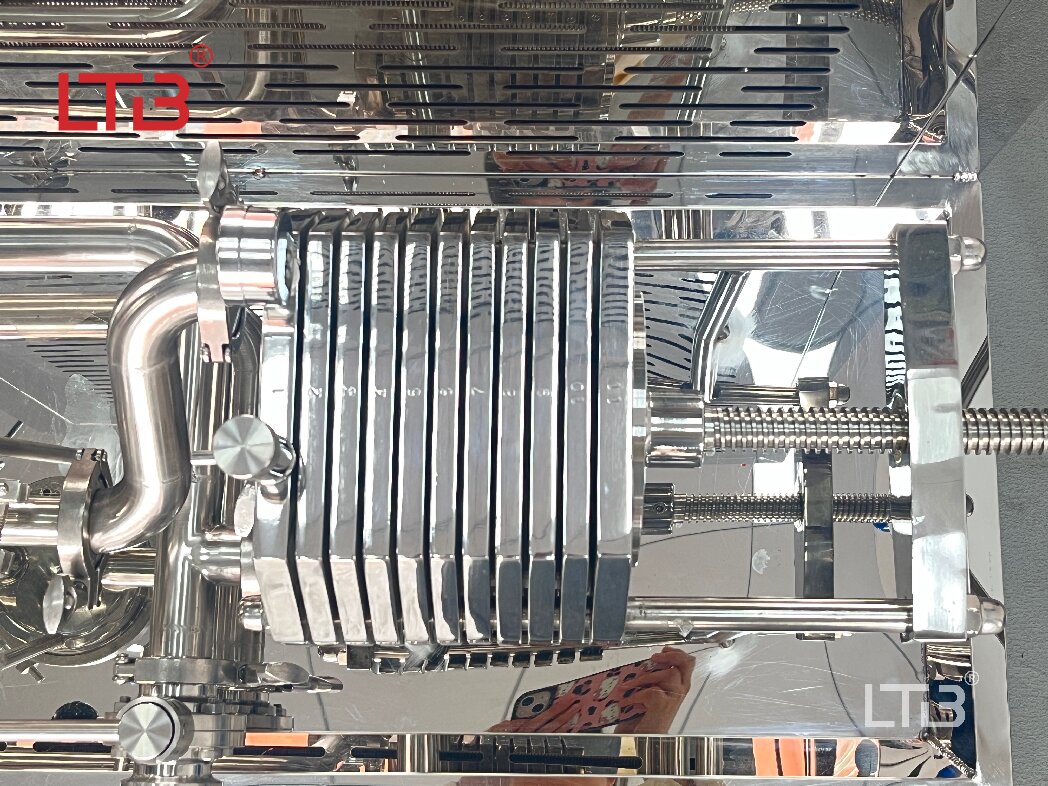

Plate and Frame Filter
The pneumatic diaphragm pump transports the cooled perfume to the filtration system. It first removes large particle impurities through integrated microporous filtration, and then undergoes deep precision filtration and purification via the plate-and-frame filter. It can efficiently eliminate fine impurities, colloids and sediments to achieve comprehensive purification and sterilization, leaving the perfume liquid crystal clear, pure in texture and stable in quality.

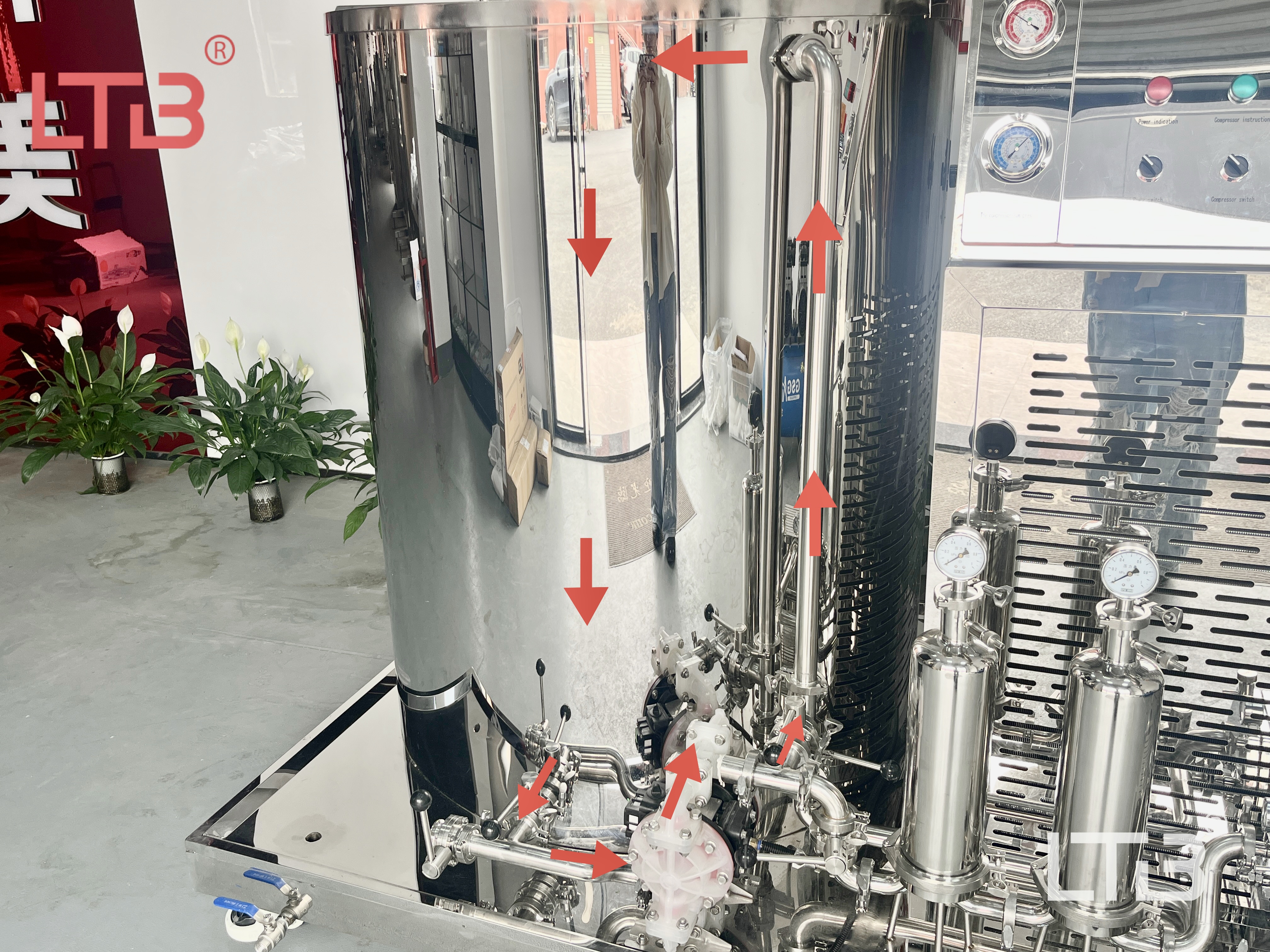

Circulation Pump
The Circulation pump enables continuous internal circulation of perfume liquid in the tank, effectively eliminating mixing dead zones. It maintains even temperature and homogeneous ingredient distribution throughout the material, while speeding up heat exchange to achieve faster cooling and superior filtration performance.
Q: What is your company's history and experience in manufacturing cosmetics production machinery?
A: Our company has been in the perfume machinery manufacturing industry for more than 26 years. We've served worldwide customers, offering tailored solutions ranging from small-batch perfume crafting to large-scale industrial perfume production.
Q: Where are your manufacturing facilities located?
A: Our main manufacturing facilities are situated in Guangzhou and Jiangsu Province, China.
Product - Related
Q: What types of perfume can your equipment produce?
A: Our full set of perfume production equipment is universally compatible with various perfume types, including floral perfume, fruity perfume, unisex fragrance, essential oil perfume, cologne, and long-lasting layered fragrance products. By adjusting mixing speed, stirring time and filtration parameters, the machines can stably process different viscosity and formula ratios to meet diversified perfume production demands.
Q: How do I ensure the quality of the products produced by your machines?
A: Our perfume production equipment adopts precise manufacturing design. Equipped with sophisticated mixing structures, it ensures even blending of fragrance raw materials. Premium materials complying with cosmetic safety standards are applied, effectively avoiding contamination during perfume processing.
Q: What is the production capacity of your equipment?
A: It varies depending on the specific model. For example, our small - scale emulsifiers can produce batches of 5 liters, while large - scale industrial models can handle up to 5000 liters per batch. Filling machines also have different output rates, from 10 bottles per minute for small - scale operations to 100 bottles per minute for high - speed production lines.
Order and Delivery
Q: What is your minimum order quantity?
A: The minimum order quantity (MOQ) varies by product type. For standard models, the MOQ is usually 1 unit(s). However, for customized products, we can discuss and appropriate quantities according to actual demands.
Q: How long does it take to deliver the machines after placing an order?
A: For in - stock items, delivery can be arranged within 7 working days. For custom - made machinery, the production and delivery time typically range from 4 weeks to 2 months, depending on the complexity of the design and production process.
Q: What are your payment terms?
A: We mainly adopt T/T (Telegraphic Transfer) as payment term. We can discuss alternative settlement methods for long-term clients. A 40% down payment shall be paid once the order is confirmed, with the rest settled prior to delivery.
After - sales Service
Q: Do you provide installation and training services?
A: Yes,we can provide a video and document forinstallation. If you still have problem, we will send our engineer oversea for installation guide. They will also train your staff on machine operation, maintenance, and basic troubleshooting.
Q: What is your warranty policy?
A: Our products come with a standard warranty of 1 year. During this period, we will repair or replace any defective parts free of charge, excluding damages caused by improper use or force majeure. We also provide long - term technical support and supply of spare parts.
