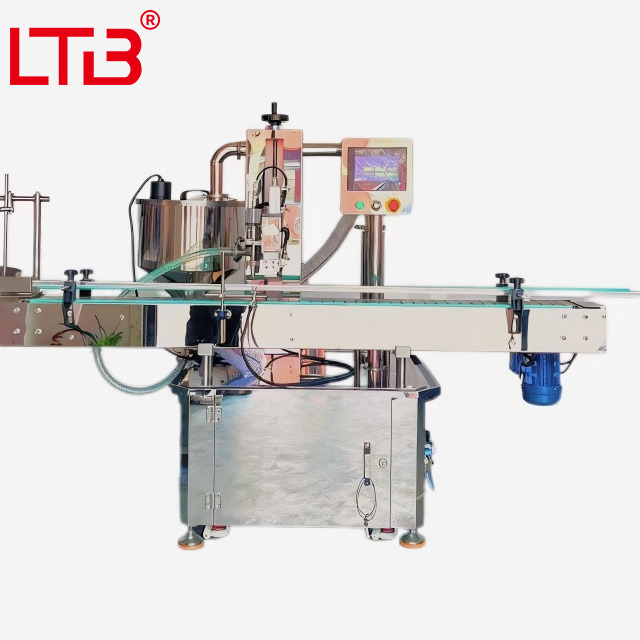

This equipment uses a high-precision stainless steel rotor pump to measure the liquid volume, accurately conveying the material from the hopper to the filling nozzle to achieve quantitative filling.
PRODUCTS DESCRIPTION
Description
Advantages
Technical Parameters
FAQ
| Filling Head | 1 Nozzle/ 2 Nozzles |
| Filling Type | Rotor Pump |
| Filling Hopper | 30-50L |
| Filling Volume | 50-5000ml, customizable |
| Filling Speed | 30-90bpm |
| Material | All contact part are made of SUS316L or SUS304(according to your requirement) |
| Filling Accuracy | ±1% |
| Control Way | SIEMENS PLC Touch Screen |

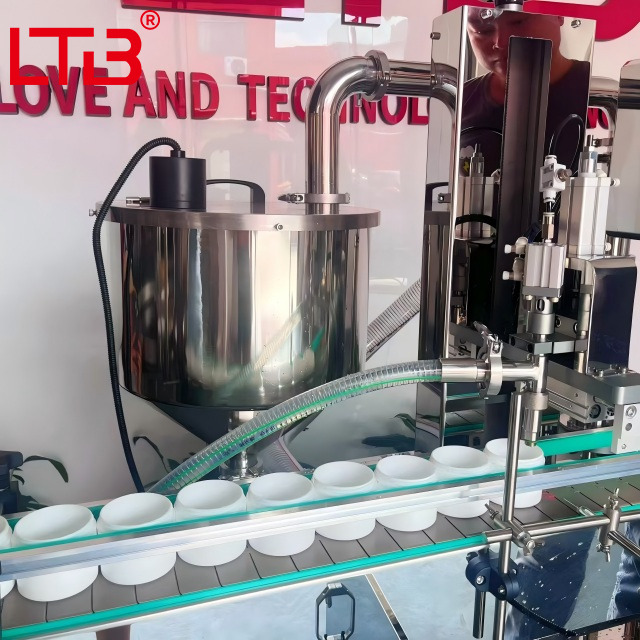

Filling Hopper
It is mainly used for storing liquid materials to be filled. It is usually made of 316L/304 stainless steel, which features good hygiene and easy cleaning, and meets the production requirements of industries such as cosmetics, food, pharmaceuticals, and daily chemical products. The capacity of the hopper depends on the model of the filling machine and the customer's production needs, generally ranging from 30L to 50L

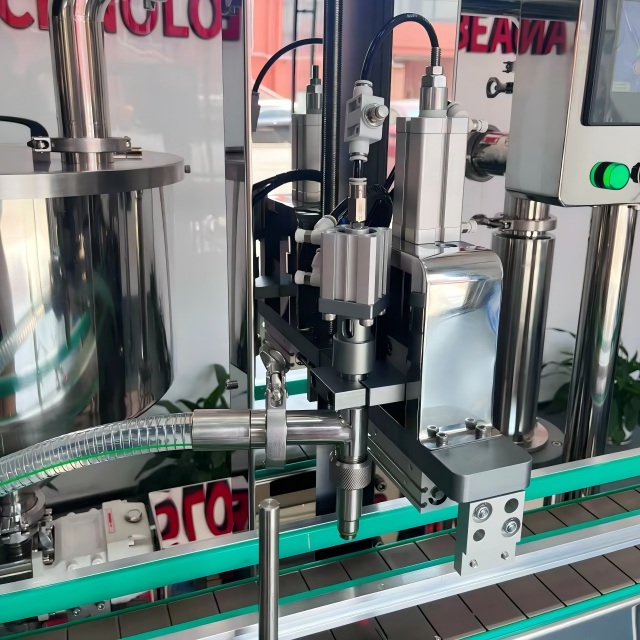

Filling Nozzle
The filling nozzle is the outlet component through which liquid materials enter the packaging container. It is usually equipped with high-precision valves and flow control devices, enabling accurate control of the liquid outflow. The filling nozzle comes in a variety of structural designs; tailored filling solutions are developed based on different filling requirements. For foamy liquids, anti-dripping and anti-foaming designs are adopted, and a customized servo system is used to reduce foam while ensuring the accuracy and stability of filling.

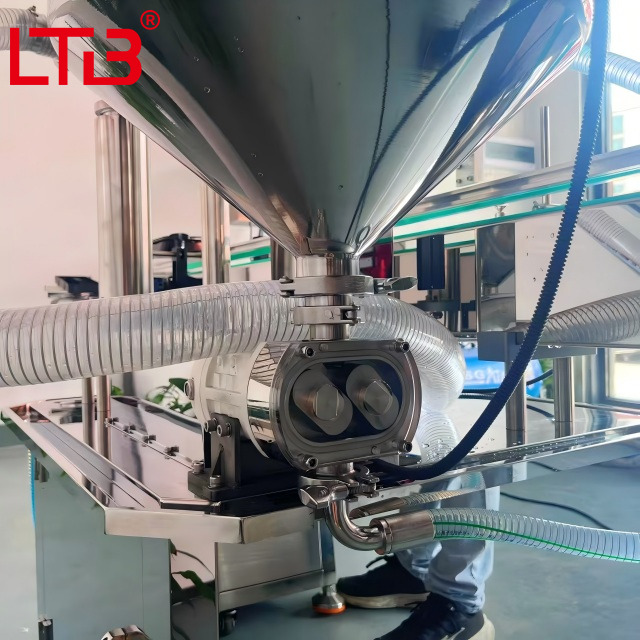

Filling pump
The filling rotor pump is the core component of the rotor pump filling machine. It is mainly composed of a pair of synchronously rotating rotors, with common types including gear rotors and cam rotors. These rotors rotate inside the pump body and transport liquids by periodically changing the volume of the pump cavity. When the rotors rotate, the liquid is sucked into the pump cavity; as the rotors continue to rotate, the liquid is carried to the outlet and then squeezed out under pressure, thereby realizing liquid transportation. This type of pump can accurately control the flow rate, handle a variety of liquids with different viscosities, and has advantages such as high stability and good hygienic performance.

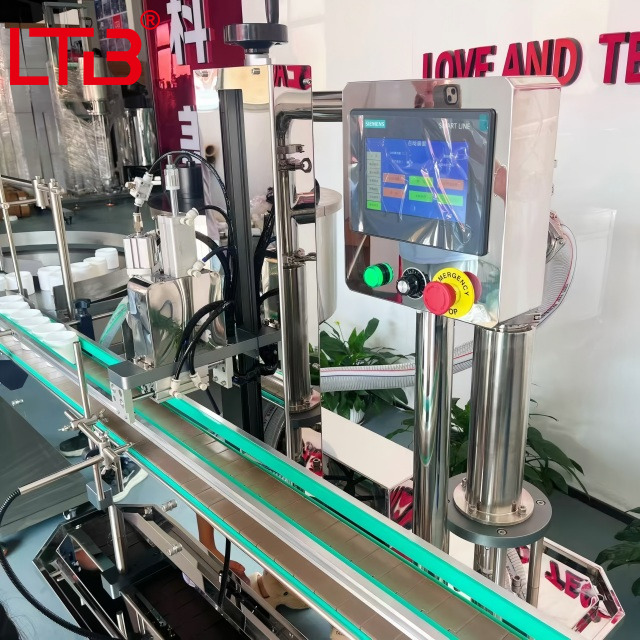

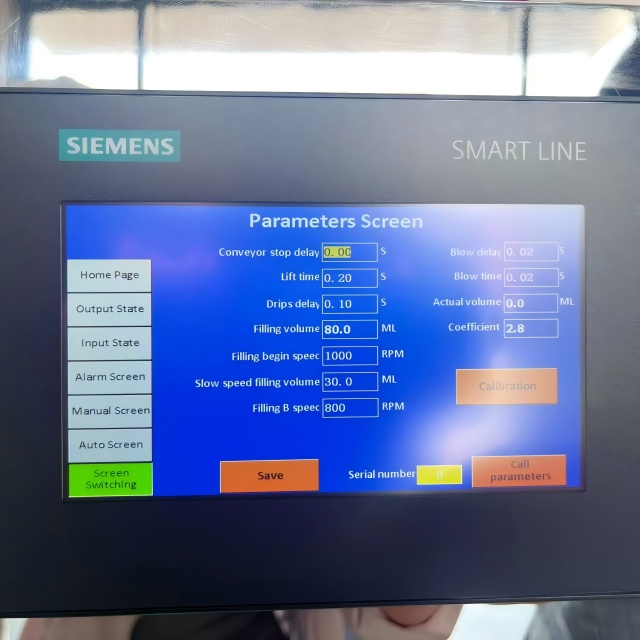

Siemens Touch Screen
The Siemens touchscreen serves as the human-machine interface (HMI) of the filling machine, and it typically features high resolution and sensitive operation. Operators can set parameters such as filling volume, filling speed, and the number of filling heads via the touchscreen. Additionally, they can monitor the equipment's operating status in real time. The touchscreen also comes with fault diagnosis and alarm functions, which can promptly detect and help resolve issues that arise during the equipment's operation, thereby enhancing the operational convenience of the equipment and improving production efficiency.
Q: What is your company's history and experience in manufacturing cosmetics production machinery?
A: Our company has been in the cosmetics/chemical/pharmaceutical/food machinery manufacturing industry for more than 26 years. We've served numerous clients globally, providing customized solutions for various production scales, from small - batch handmade cosmetics to large - scale industrial production.
Q: Where are your manufacturing facilities located?
A: Our main manufacturing facilities are situated in Guangzhou and Jiangsu Province, China.
Product - Related
Q: Can the filling machine be directly connected to the mixer?
A: Yes, it is absolutely feasible. Our rotor pump filling machine is equipped with a self-priming function, which enables it to directly draw the finished product from the storage tank or mixer into the filling hopper for the filling process. It is easy to operate, and compared with manual transfer of finished products, it can reduce the time that the product is exposed to the air to a certain extent.
Q: How should I clean the machine when I need to switch to a different product?
A: It’s very easy to operate – we just need to let cleaning water flow into the machine and operate it directly on the touchscreen. The water after cleaning will also be collected and discharged through the sewage pipe. We can provide you with a detailed.
Q: In what cases is it recommended to use this filling machine?
A: This filling machine is suitable for most products with relatively high viscosity, especially those containing particles—such as chili sauce and curry sauce. It is an excellent choice for filling these products and is also very easy to clean.
Order and Delivery
Q: What is your minimum order quantity?
A: The minimum order quantity (MOQ) depends on the product. For standard models, the MOQ is usually 1 unit(s). However, for customized products, we can discuss and determine a suitable quantity based on your specific requirements.
Q: How long does it take to deliver the machines after placing an order?
A: For in - stock items, delivery can be arranged within 7 working days. For custom - made machinery, the production and delivery time typically range from 4 weeks to 2 months, depending on the complexity of the design and production process.
Q: What are your payment terms?
A: We usually accept payments through T/T (Telegraphic Transfer). For regular customers, we may also consider other payment methods after negotiation. A 40% deposit is required upon order confirmation, and the balance is due before shipment.
After - sales Service
Q: Do you provide installation and training services?
A: Yes, we offer on - site installation and training services for our customers. Our technicians will ensure that the machines are properly installed and operational. They will also train your staff on machine operation, maintenance, and basic troubleshooting.
Q: What is your warranty policy?
A: Our products come with a standard warranty of 1 year. During this period, we will repair or replace any defective parts free of charge, excluding damages caused by improper use or force majeure. We also provide long - term technical support and supply of spare parts.
