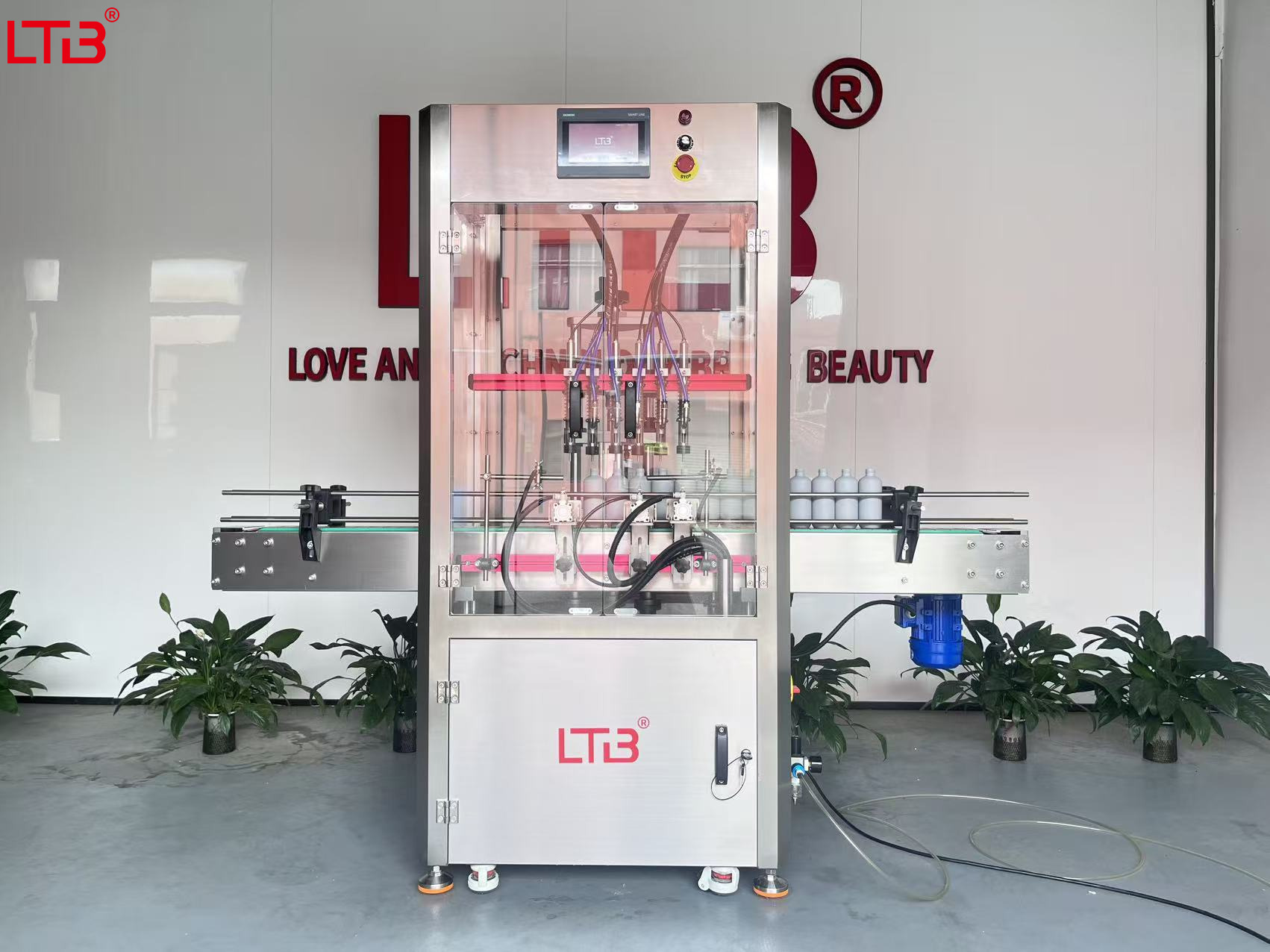

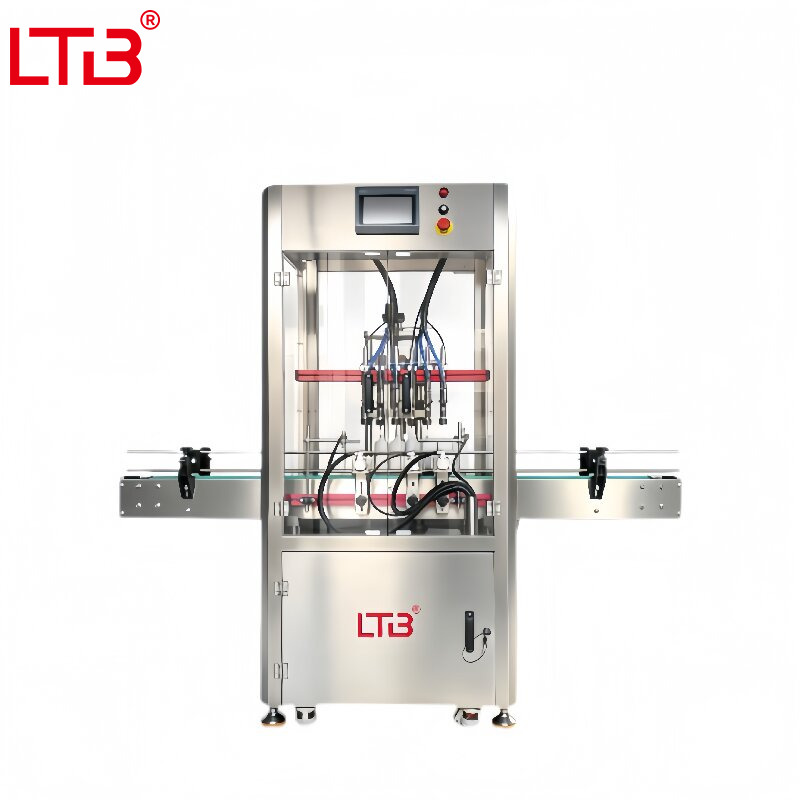

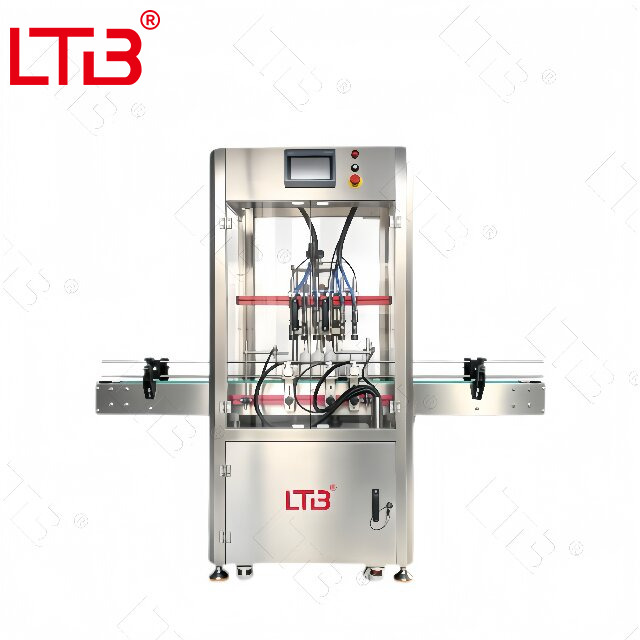

The automatic air blow bottle washing machine is a water-free dry dust removal bottle washing equipment. Abandoning the traditional water washing mode, it relies on the principle of high-pressure clean compressed air blowing + negative pressure synchronous dust suction to automatically clean dust, debris and impurities inside various bottles. Fully enclosed operation eliminates water consumption, secondary pollution and extra drying procedures. Widely applicable to bottle pre-treatment lines for food, beverage, daily cosmetics and other industries, the machine can work independently or seamlessly connect with filling, capping and labeling lines, serving as core supporting equipment for modern clean packaging production lines.
| Automatic Bottle Washing Machine | ||||||
| Working Mode | Dry cleaning via high-pressure clean air blowing and negative pressure dust suction | |||||
| Bottle Heads | 6 heads(customizable) | |||||
| Applicable Bottle Height | 100–220mm (customizable) | |||||
| Body Material | Food-grade 304 stainless steel | |||||
| Control System | PLC touch screen | |||||
| Air Pressure | 0.4–0.6MPa | |||||
| Voltage | 220V, 50/60Hz | |||||
| Applicable Bottle Types | Round, square bottles (suitable for glass and plastic bottles) | |||||

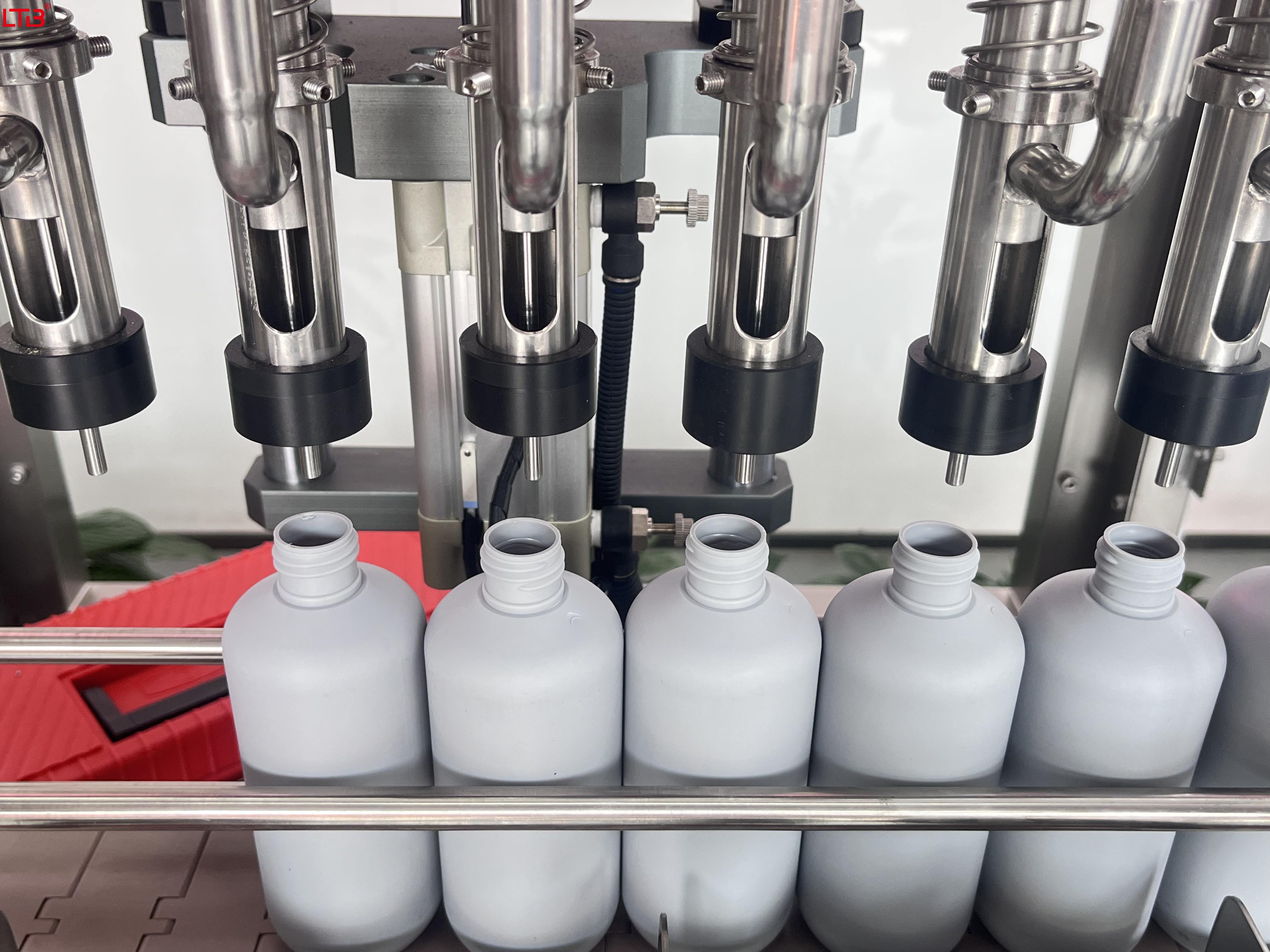

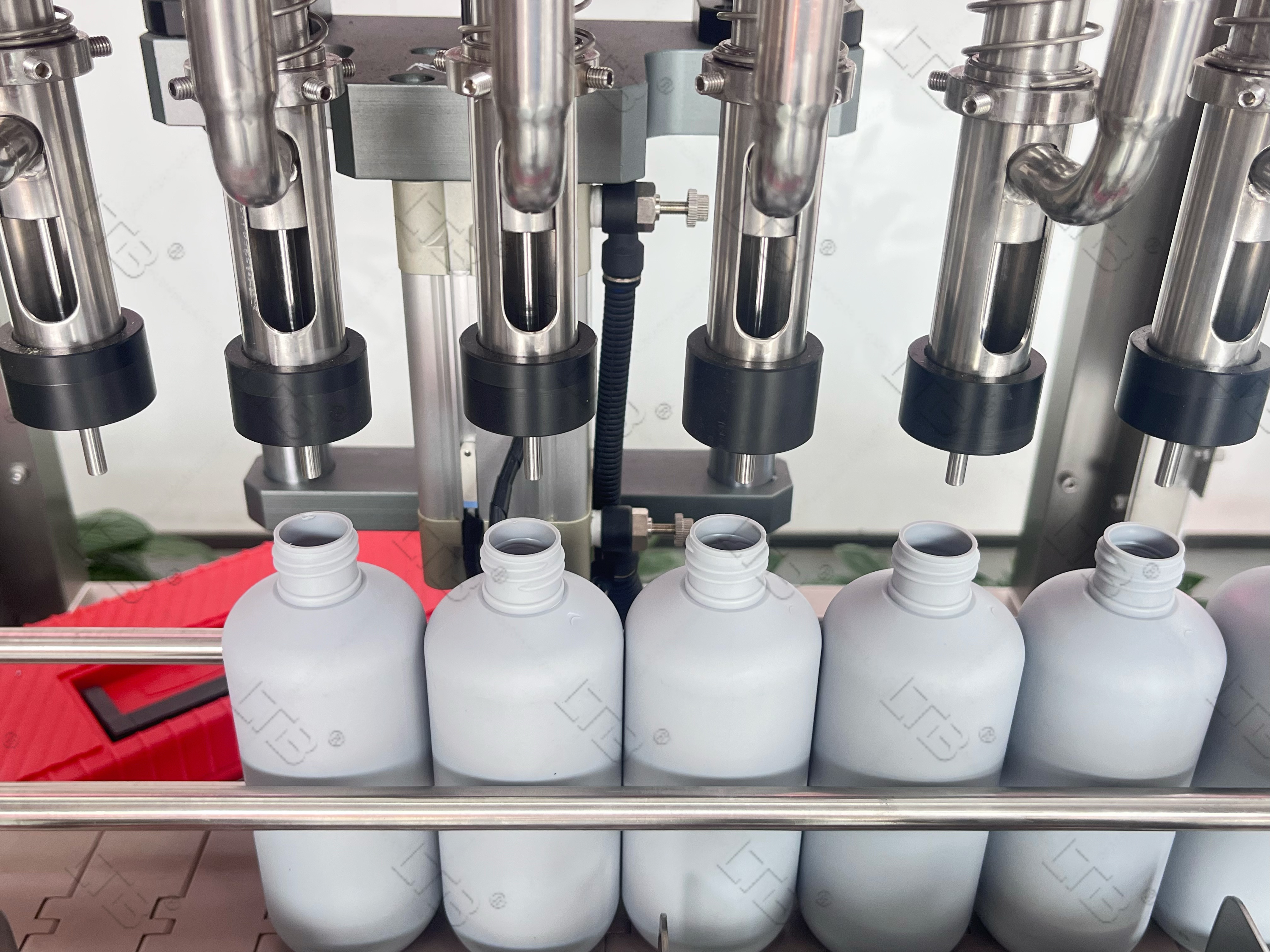

Bottle rinsing nozzle
Bottle rinsing nozzle, the core cleaning component. High‑pressure clean air ejects into bottles. Combined with negative‑pressure dust suction, it efficiently blows out dust and debris inside bottles. The nozzle is adjustable for bottles of different heights.

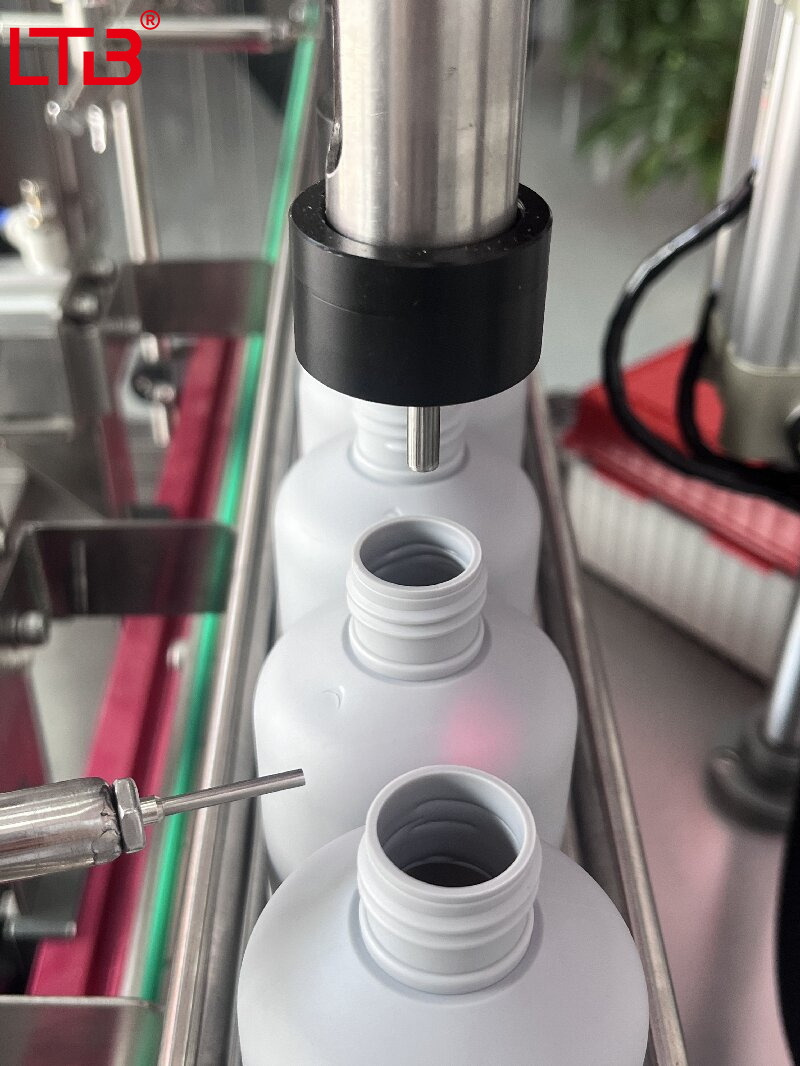

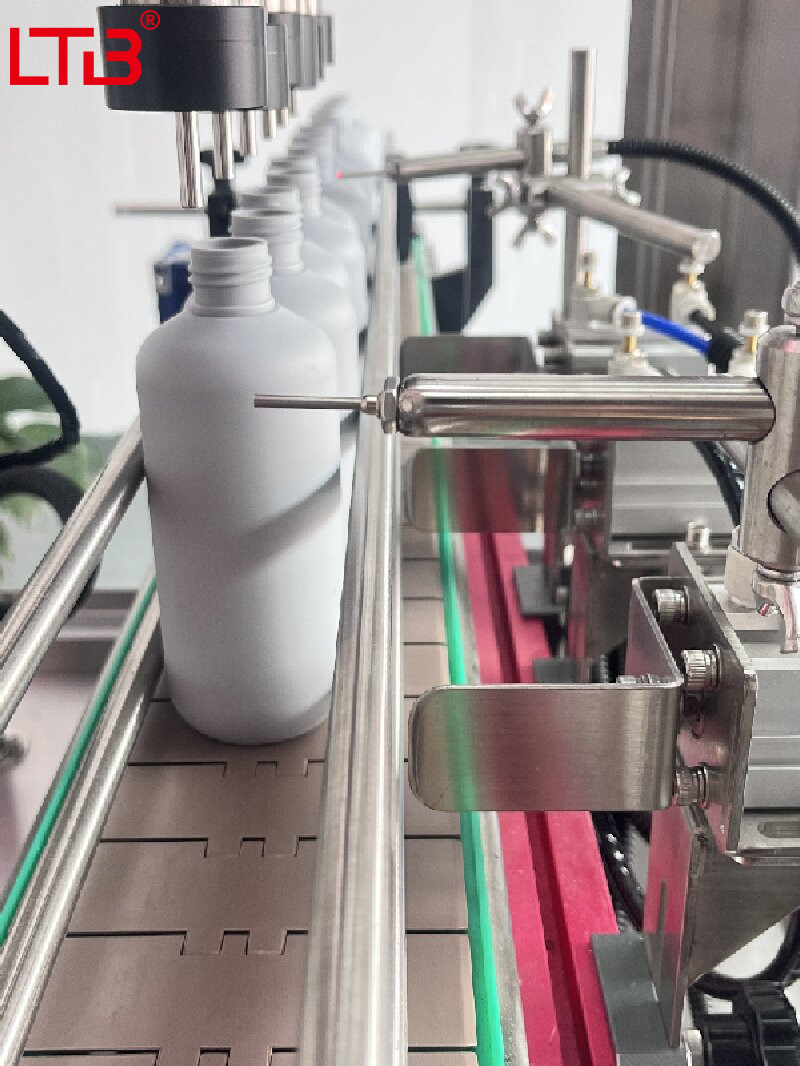

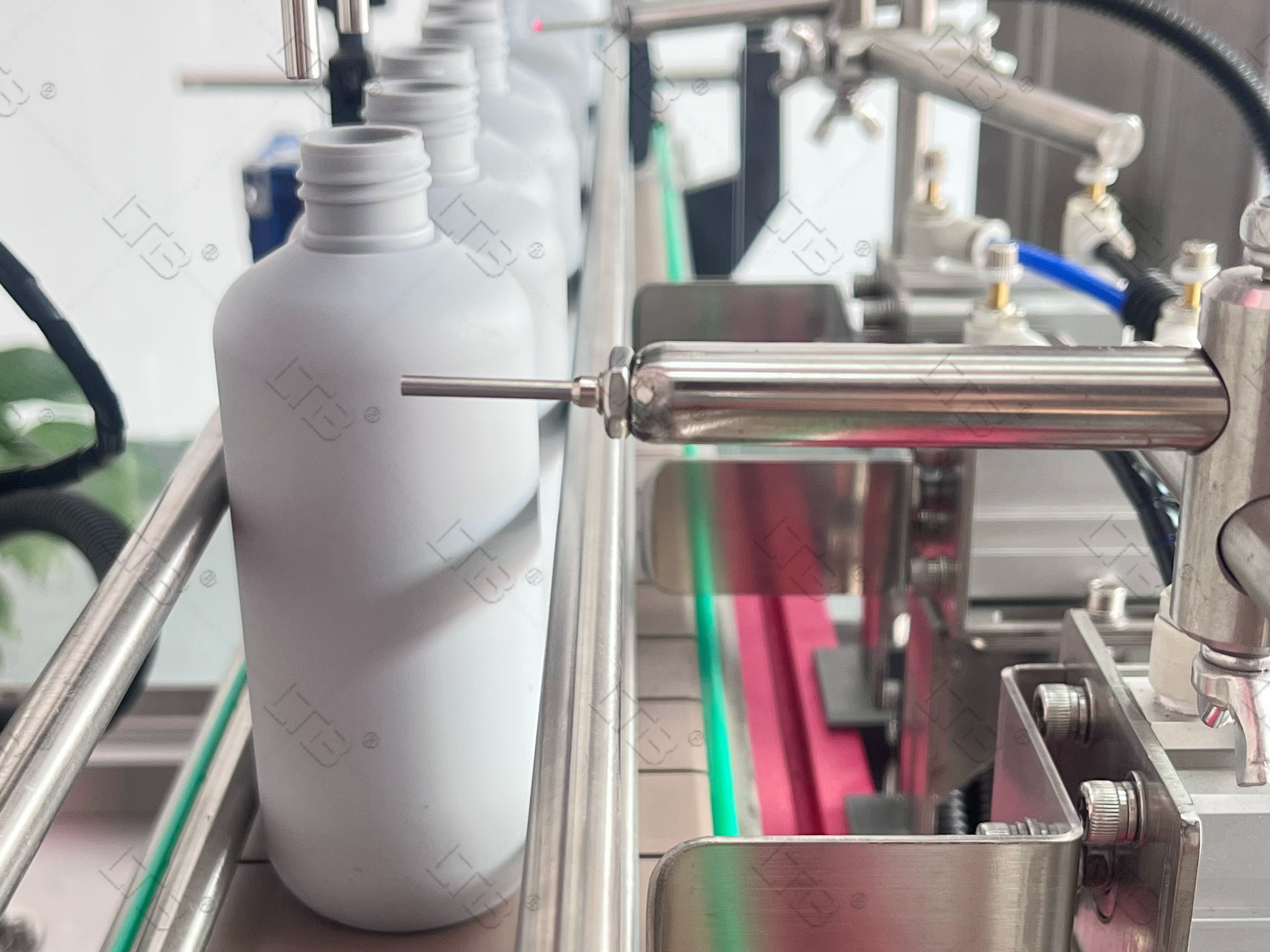

Photo-electric sensor
It accurately detects bottle position to trigger feeding and cleaning actions. No‑bottle‑no‑operation function prevents idle running, ensuring stable continuous production and reducing malfunctions.

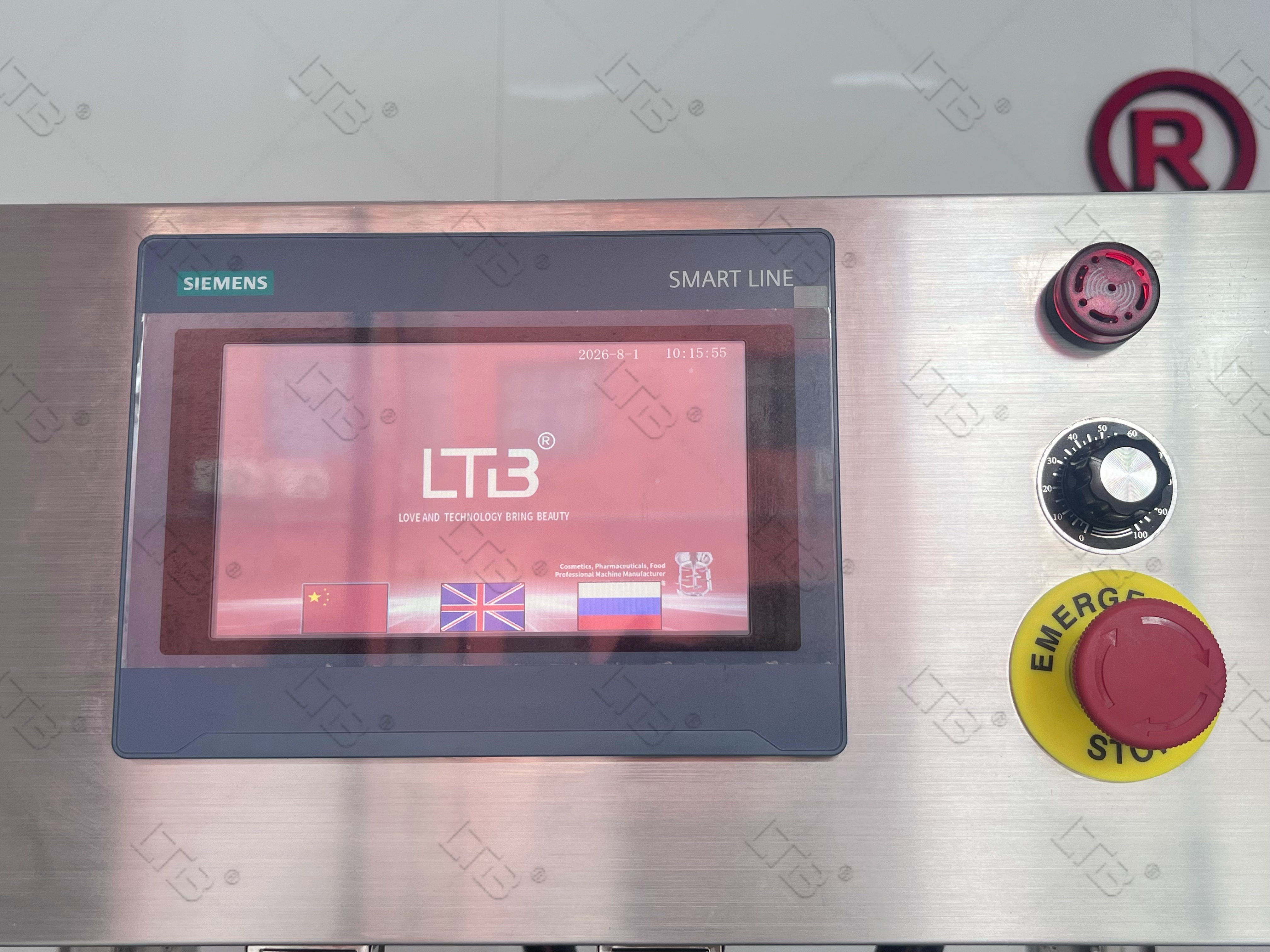

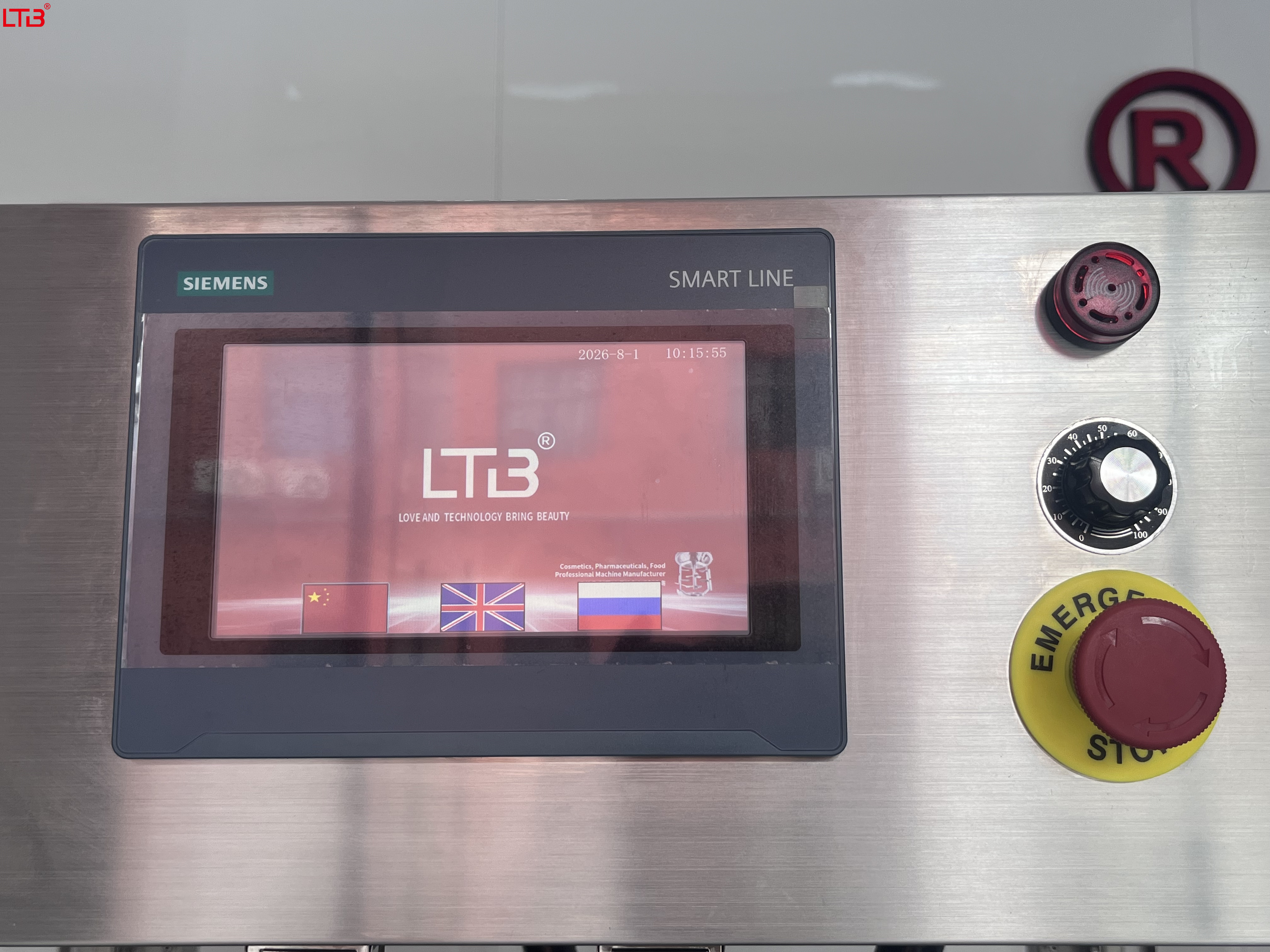

Touch screen control
Touch screen control panel, PLC‑based HMI center. Visual interface for setting speed, blowing time and other parameters. One‑button start‑stop, equipped with emergency stop button, user‑friendly operation, multi‑language support.

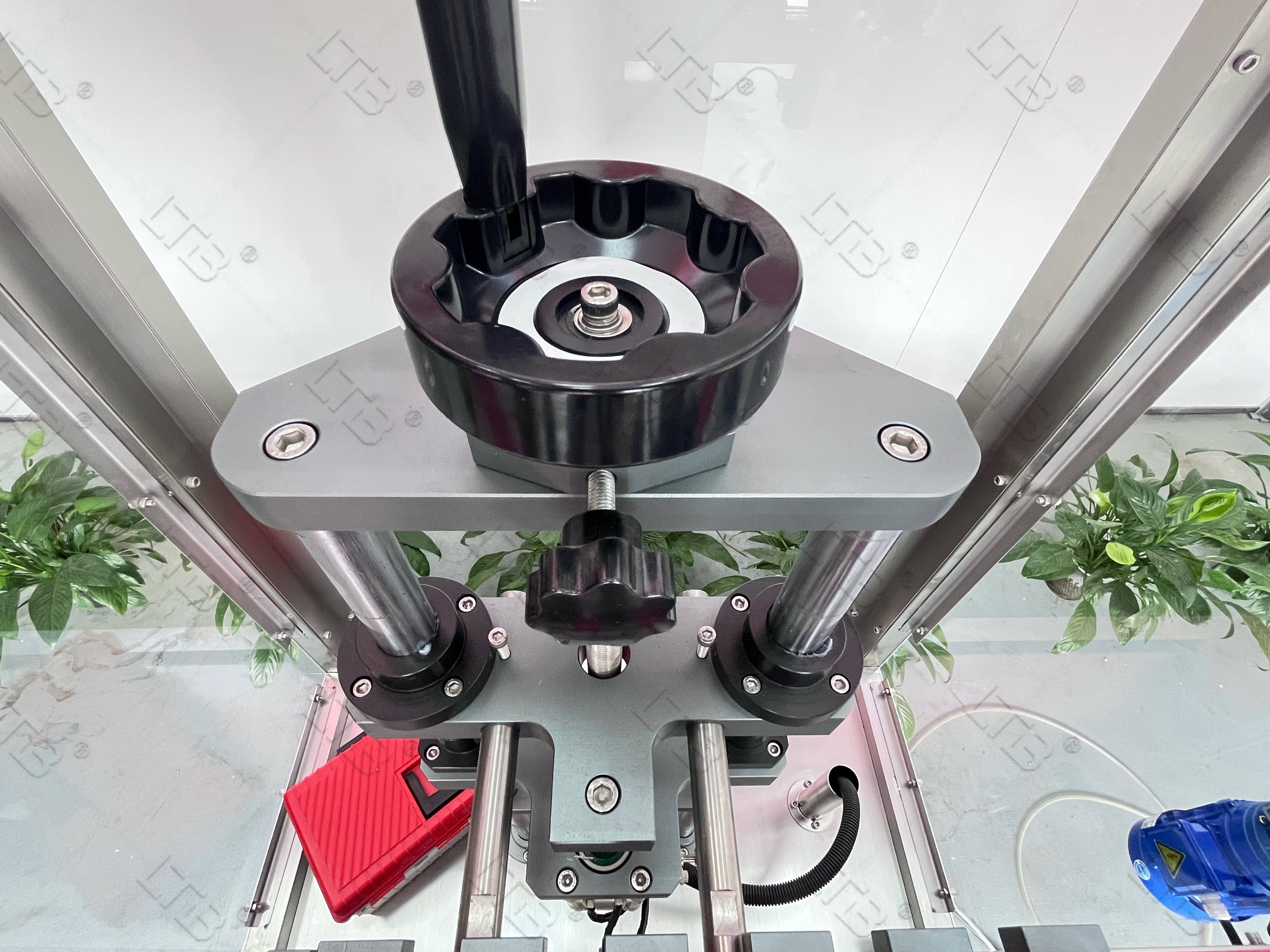

Height‑adjustment handwheel
Manually adjust the height of cleaning nozzles simply by turning the handwheel with no extra tools required. It fits bottles of various heights, greatly shortening setup time for product changeover.
Q: What is your company's history and experience in manufacturing cosmetics production machinery?
A: Our company has been in the cosmetics/chemical/pharmaceutical/food machinery manufacturing industry for more than 26 years. We've served numerous clients globally, providing customized solutions for various production scales, from small - batch handmade cosmetics to large - scale industrial production.
Q: Where are your manufacturing facilities located?
A: Our main manufacturing facilities are situated in Guangzhou and Jiangsu Province, China.
Product - Related
Q: What is the working principle of this air‑blow bottle washing machine? Is water required?
A: It adopts dry‑air cleaning with no water required. High‑pressure clean compressed air blows dust and debris inside bottles, while the negative‑pressure system sucks contaminants out simultaneously. Clean bottles can go directly to filling without drying.
Q: What bottle shapes and materials are compatible?
A: Compatible with glass, PET and PP bottles; works for round, square, flat and special‑shaped bottles. Adjust diameter & height via handwheels, no mold change needed for fast product switch.
Q: Can you customize the machine for very small or extra‑tall bottles?
A: Yes, we can customize the machine according to your bottle dimensions including diameter, height and neck size.
Order and Delivery
Q: What is your minimum order quantity?
A: The minimum order quantity (MOQ) depends on the product. For standard models, the MOQ is usually 1 unit(s). However, for customized products, we can discuss and determine a suitable quantity based on your specific requirements.
Q: How long does it take to deliver the machines after placing an order?
A: For in - stock items, delivery can be arranged within 7 working days. For custom - made machinery, the production and delivery time typically range from 4 weeks to 2 months, depending on the complexity of the design and production process.
Q: What are your payment terms?
A: We usually accept payments through T/T (Telegraphic Transfer). For regular customers, we may also consider other payment methods after negotiation. A 40% deposit is required upon order confirmation, and the balance is due before shipment.
After - sales Service
Q: Do you provide installation and training services?
A: Yes, we offer on - site installation and training services for our customers. Our technicians will ensure that the machines are properly installed and operational. They will also train your staff on machine operation, maintenance, and basic troubleshooting.
Q: What is your warranty policy?
A: Our products come with a standard warranty of 1 year. During this period, we will repair or replace any defective parts free of charge, excluding damages caused by improper use or force majeure. We also provide long - term technical support and supply of spare parts.
