When it comes to manufacturing products for various industries, one of the most important processes is filling bottles. Whether it’s food, beverages, chemicals, or cosmetics, choosing the right bottle filling machine is essential to ensure consistent quality, efficient production, and minimal waste. Understanding the basic principles behind these machines can significantly help in choosing the most suitable equipment for your production line. In this article, we will dive into the principles of bottle filling machines, different types, and the factors to consider when selecting one for your business.
Overview of Bottle Filling Machines

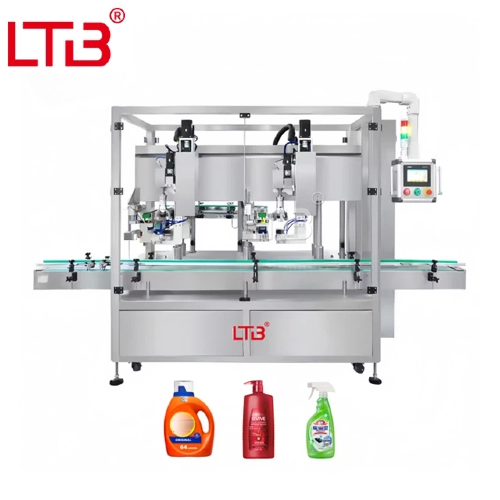

A bottle filling machine is a critical piece of equipment in production lines that package liquids or semi-liquids into bottles. These machines are essential for automating the filling process, ensuring fast, accurate, and efficient bottling. Depending on the product being filled, different machines are designed to meet specific needs, such as high-speed filling, precise measurement, or filling with minimal air exposure.
Whether you're filling water, juice, sauces, lotions, or even chemical products, the right bottle filling machine can greatly improve production efficiency and product consistency. By understanding the principles behind these machines, manufacturers can make informed decisions about their packaging systems.
The principle behind a bottle filling machine influences several critical factors in the production process:
Efficiency: The choice of machine can determine how fast your production line operates.
Accuracy: Proper filling ensures that bottles are filled to the correct level, preventing overfilling or underfilling.
Product Quality: Accurate filling prevents spillage, maintains product quality, and meets industry standards.
By understanding the different machine principles and choosing the right one for your needs, you can streamline your production process and ensure optimal results.
Basic Working Principle of Bottle Filling Machines
How Bottle Filling Machines Operate
The general working mechanism of bottle filling machines involves the use of various components like pumps, nozzles, valves, and sensors to regulate the flow of liquids into bottles. These machines work by drawing the liquid from a supply tank or reservoir and transferring it into bottles via a controlled process. The operation can either be manual, semi-automatic, or fully automatic, depending on the machine type.
Pumps: Used to transfer liquid from one place to another. For instance, peristaltic pumps are used for accurate liquid transfer in some filling machines.
Nozzles: Positioned above each bottle, nozzles release the liquid into the bottles. Depending on the product, the nozzle design can be adjusted.
Valves: These control the opening and closing of liquid flow, ensuring that the right amount of liquid is dispensed into the bottles.
Sensors and Controls: Digital control systems and sensors regulate the filling volume and ensure consistent output.
The Role of Pressure, Gravity, and Vacuum in Filling
Different principles govern the filling process, and depending on the product, the principle applied can vary:
Gravity: Gravity-based machines use the natural force of gravity to move the liquid into the bottle. This method is used for low-viscosity liquids like water, soft drinks, and alcohol.
Pressure: In pressure-based systems, pressure is applied to push the liquid into the bottles. This method is commonly used for carbonated beverages where the liquid needs to be pushed into the bottle under pressure.
Vacuum: Vacuum-based systems create a vacuum inside the bottle to pull the liquid into it. This is ideal for high-viscosity liquids, delicate products, or when minimal air exposure is needed.
Types of Bottle Filling Machines and Their Principles
Different types of bottle filling machines are designed for specific types of products. Here’s a look at the most common types and their working principles.
Gravity Filling Machines
Working Principle of Gravity Filling Machines
Gravity filling machines use the natural force of gravity to fill bottles. These machines rely on gravity to allow liquid to flow from the container into the bottles. The liquid flows through a nozzle into the bottle, and the process is often controlled by an automatic shut-off mechanism that stops the flow once the bottle reaches the required level.
Ideal for: Thin liquids like water, juices, and wine.
Benefits: Simple design, low maintenance, and cost-effective.
Limitations: Not suitable for thick or viscous liquids.
Pressure Filling Machines
Working Principle of Pressure Filling Machines
In a pressure filling system, the liquid is forced into the bottles by applying pressure from a higher level. The liquid is stored in a pressure chamber, and when the valve opens, the liquid is pushed into the bottles under pressure. This process is faster than gravity filling and is ideal for filling bottles with carbonated beverages, which require precise control of air to avoid foaming.
Ideal for: Carbonated drinks, beer, and foamy liquids.
Benefits: Faster than gravity filling and ideal for high-volume production.
Limitations: More complex and requires maintenance of pressure systems.
Vacuum Filling Machines
Working Principle of Vacuum Filling Machines
Vacuum filling machines work by creating a vacuum inside the bottle, pulling the liquid into the bottle. A vacuum pump removes air from the bottle, and once the vacuum is strong enough, the liquid is drawn into the bottle. This method is typically used for thick liquids or when minimizing air exposure is essential, such as for preserving delicate products like sauces, syrups, or oils.
Ideal for: High-viscosity liquids, oils, and delicate products.
Benefits: Minimal air exposure, preserving the product’s quality.
Limitations: More complex machinery, slower than gravity or pressure filling.
Piston Filling Machines
Working Principle of Piston Filling Machines
Piston filling machines use a piston to accurately measure and fill liquid into bottles. The piston draws liquid from a reservoir and then dispenses it into the bottle in a controlled manner. These machines are often used when high precision is required, such as in the cosmetics or pharmaceutical industries.
Ideal for: Thick liquids, creams, gels, and viscous substances.
Benefits: High precision and accuracy.
Limitations: Slower than gravity or pressure fillers; requires frequent cleaning.
Servo Filling Machines
Working Principle of Servo Filling Machines
Servo filling machines are a modern innovation that uses servo motors to control the filling process with high precision. The servo motor allows for adjustable filling speeds, ensuring that each bottle is filled accurately and consistently. These machines are highly flexible and can be used for a variety of products and bottle sizes.
Ideal for: A variety of products, including low and high-viscosity liquids.
Benefits: High precision, flexibility, and ease of operation.
Limitations: Higher initial investment.
Factors Affecting the Filling Process
Viscosity of the Product
The viscosity of the liquid being filled plays a significant role in determining which type of filling machine is best suited. Thin liquids flow easily and can be filled using gravity filling machines, whereas thicker liquids require pressure or piston-based filling systems to ensure accuracy and consistency.
Product Type | Recommended Filling Machine | Machine Principle |
Water, juices, alcohol | Gravity Filling | Gravity |
Carbonated drinks | Pressure Filling | Pressure |
Sauces, syrups, creams | Piston or Vacuum Filling | Piston/Vacuum |
Oil, honey, pastes | Piston Filling | Piston |
Container Type and Size
The type of bottle and its size will influence the choice of filling machine. For example, bottles with irregular shapes may require specialized nozzles, while machines with adjustable filling volumes are necessary for filling different bottle sizes.
Filling Speed and Accuracy
Balancing speed and accuracy is a key consideration. While automatic machines are capable of high-speed production, some products may require slower filling to maintain accuracy and prevent spillage. Servo filling machines are an excellent solution for precise and variable-speed filling.
Automation and Control in Bottle Filling Machines
Automatic vs. Semi-Automatic Systems
Automatic systems are ideal for high-volume production lines, offering consistent filling without the need for human intervention. Semi-automatic systems, while slower, provide flexibility and are suitable for medium-scale operations.
Control Systems for Accurate Filling
Control systems, including digital controls and servo motors, play a crucial role in ensuring the filling process is accurate and consistent. These systems allow manufacturers to adjust the filling process quickly, ensuring optimal filling levels.
Common Challenges in Bottle Filling and Their Solutions
Overfilling or Underfilling
Overfilling or underfilling can result in wasted product and inconsistent packaging. To prevent this, manufacturers can use filling machines with digital controls or servo motors to monitor and adjust the filling volume.
Air Bubbles and Foam Formation
Foam and air bubbles are common problems when filling carbonated or foamy liquids. Pressure and vacuum filling systems are particularly useful for minimizing foam formation.
Spillage and Leakage
Spillage and leakage often occur due to improper nozzle alignment or worn-out seals. Ensuring regular maintenance and using machines with self-cleaning nozzles can prevent such issues.
Conclusion
The principle behind a bottle filling machine is influenced by factors such as the type of product, the container used, and the required level of filling accuracy. Different filling technologies, including gravity, pressure, vacuum, piston, and servo motors, each offer unique advantages depending on your product’s specific needs.
When selecting a filling machine, it’s important to consider the viscosity of your product, the size and shape of the container, and the speed at which you need to fill. Whether you're filling thin liquids with a gravity filling system, carbonated beverages with a pressure filling system, or viscous products with piston or vacuum fillers, the right machine will enhance production efficiency and ensure consistent product quality.
At LTB Machinery Co., Ltd., we offer a range of high-quality bottle filling machines designed to meet diverse industry needs. Our expert team is ready to help you select the perfect filling solution for your business. Feel free to contact us to learn more and get personalized recommendations that suit your production requirements. Let us help you optimize your filling process and take your production line to the next level.
FAQ
Q1: What is the difference between gravity filling and pressure filling machines?
A1: Gravity filling machines use the force of gravity to fill bottles, making them suitable for thin liquids. Pressure filling machines use air or gas pressure to push the liquid into bottles and are ideal for carbonated or foamy liquids.
Q2: How do I know which filling machine is suitable for my product?
A2: The choice of machine depends on factors like viscosity, product sensitivity, and whether you need to control air exposure. For thick liquids, piston or vacuum fillers are ideal, while thin liquids work best with gravity or pressure fillers.
Q3: Can bottle filling machines handle different types of bottles?
A3: Yes, modern filling machines are often adjustable and can handle various bottle shapes and sizes. Some machines come with changeable nozzles to accommodate different bottle types.
Q4: What should I look for in a filling machine?
A4: Look for features like adjustable filling volume, ease of cleaning, speed, and accuracy. Machines with servo motors offer flexibility and precision, while automated systems provide high-speed production with minimal labor.
