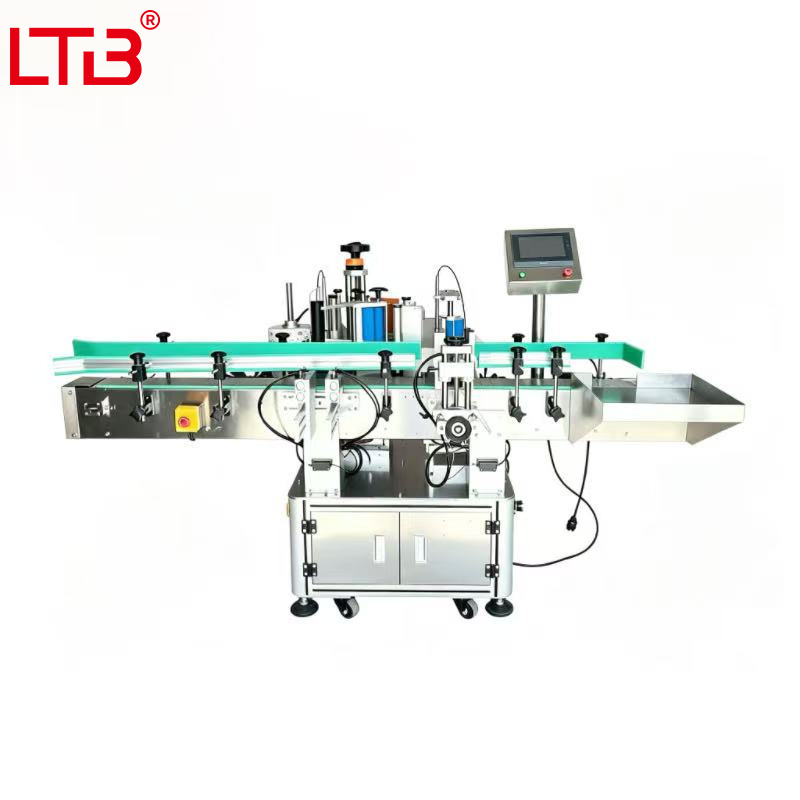

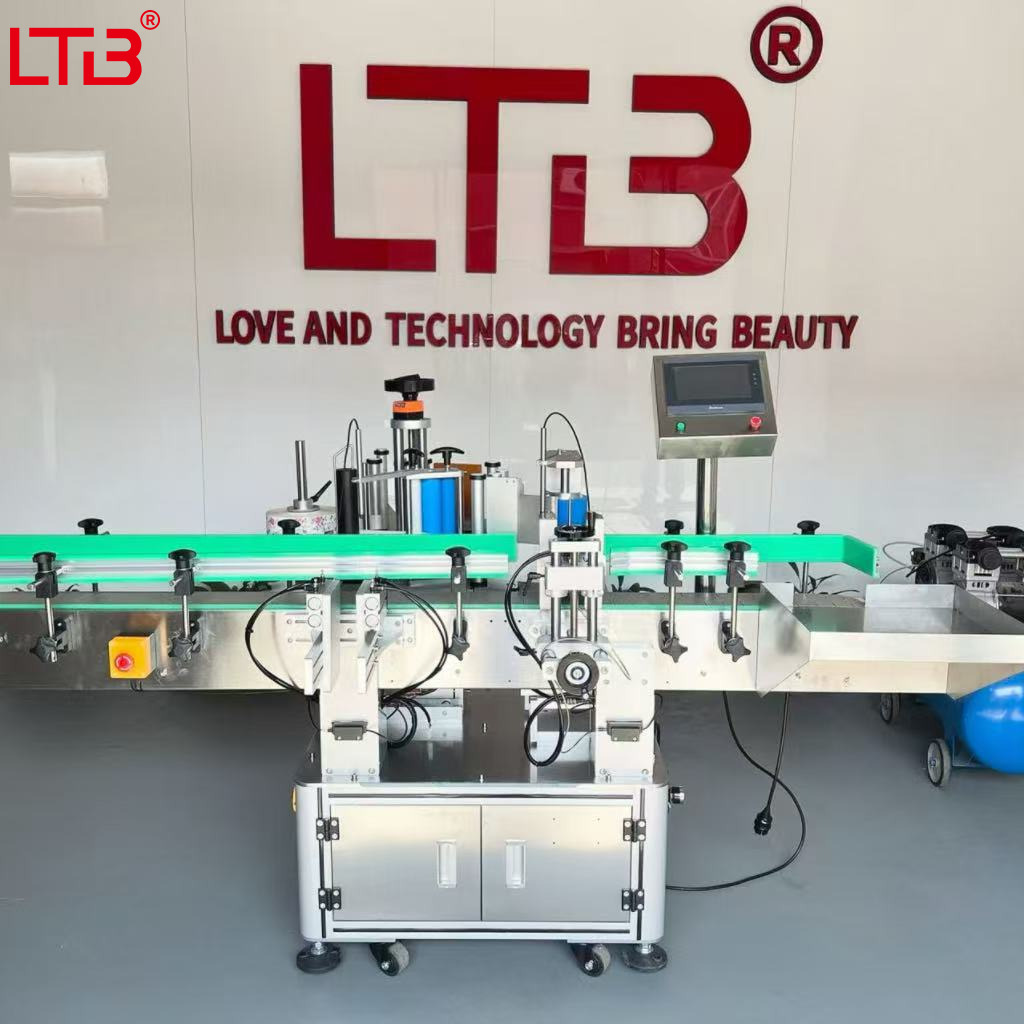

PRODUCTS DESCRIPTION
Description
Advantages
Technical Parameters
FAQ
| Labeling Accuracy | ±1mm (errors caused by product and label are not concerned) | ||||
| Labeling Speed | 20-30pcs/min(influenced by the size of the product and label) | ||||
| Applicable Product Diameter | 20-100mm | ||||
| Applicable Label Length | 20-330mm | ||||
| Applicable Label Width | 20-170mm(height of release paper) | ||||
| Applicable Label Roll | Inner diameter 76mm; Outer diameter≤280mm | ||||
| Device Dimension | 2200*1200*1420mm | ||||
| Power | 220V/1-Phase | ||||

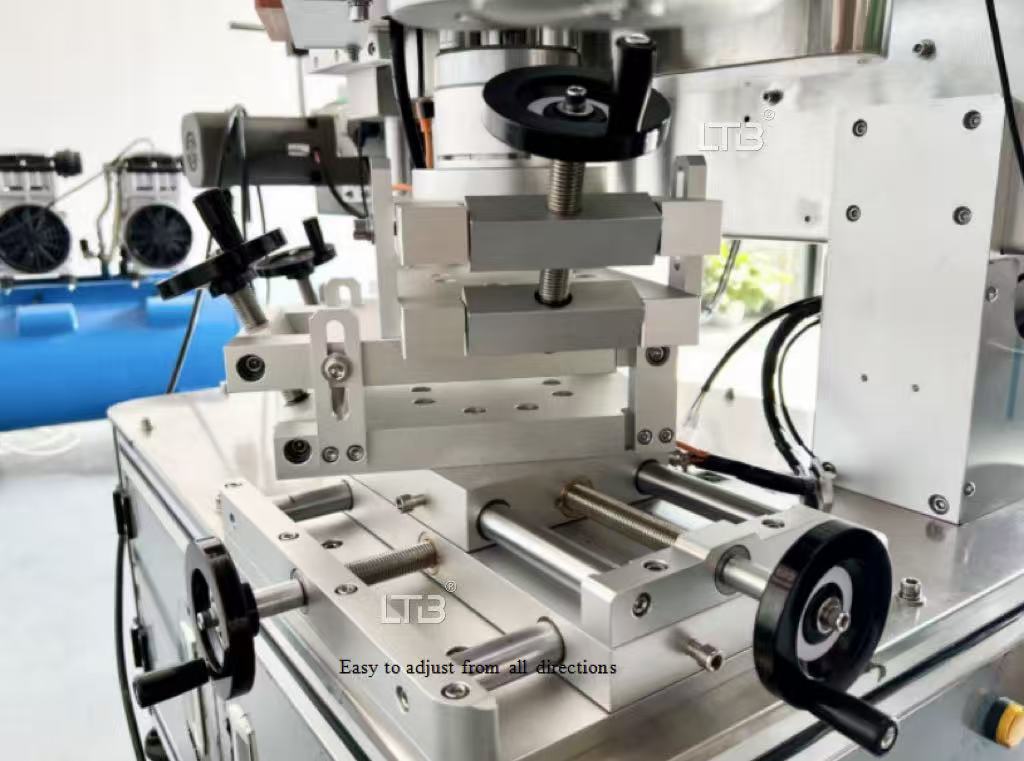

Handwheel Adjustment
The labeling machine mainly adopts a handwheel and lead screw structure for tool-free adjustment. Parameters such as height, conveyor width and labeling head position can be adjusted simply by turning the handwheel without loosening multiple screws or using wrenches. Most models are equipped with a graduated dial for precise reproduction of adjusted positions. It features short setup time for bottle changeovers and lower operator skill requirements, along with less label waste from trial labeling.

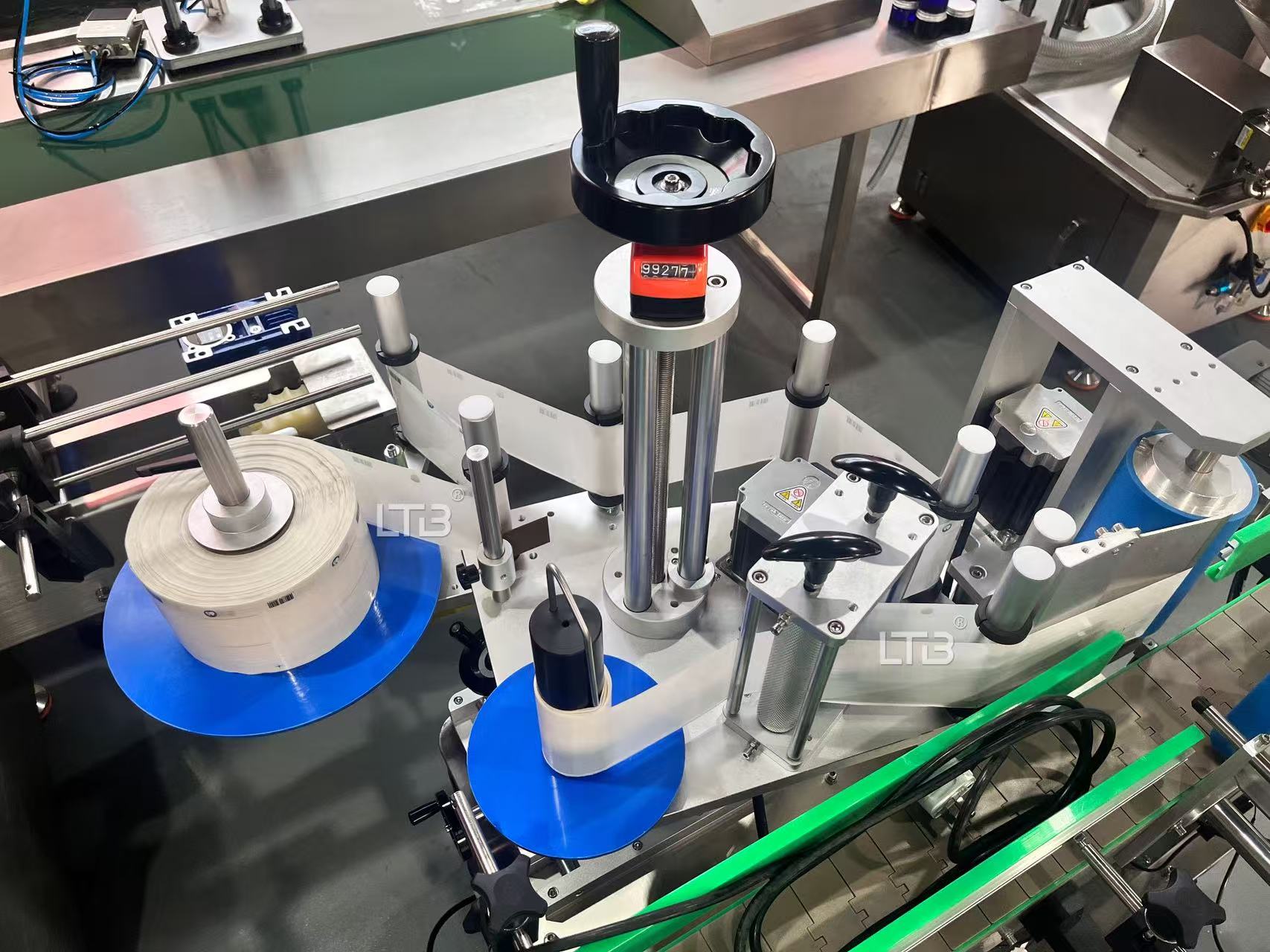

Wrap-around Label
The label routing assembly consists of a label unwinding reel, multiple guide rollers, tension buffer unit, traction driving roller and liner rewinding reel. The label web runs along neatly arranged guide rollers with controllable tension for smooth feeding to prevent deviation and web breakage. After label peeling, the release liner is rewound automatically. It supports quick change of different label widths and ensures stable continuous labeling.
High Precision Sensor
The labeling machine is equipped with object detection sensor and label sensor. The object sensor detects whether bottles arrive at the labeling station to avoid dispensing labels without products. The label sensor detects gaps or color marks between labels to precisely control label feeding length, ensuring consistent labeling position and preventing missing, repeated or incorrect labeling.

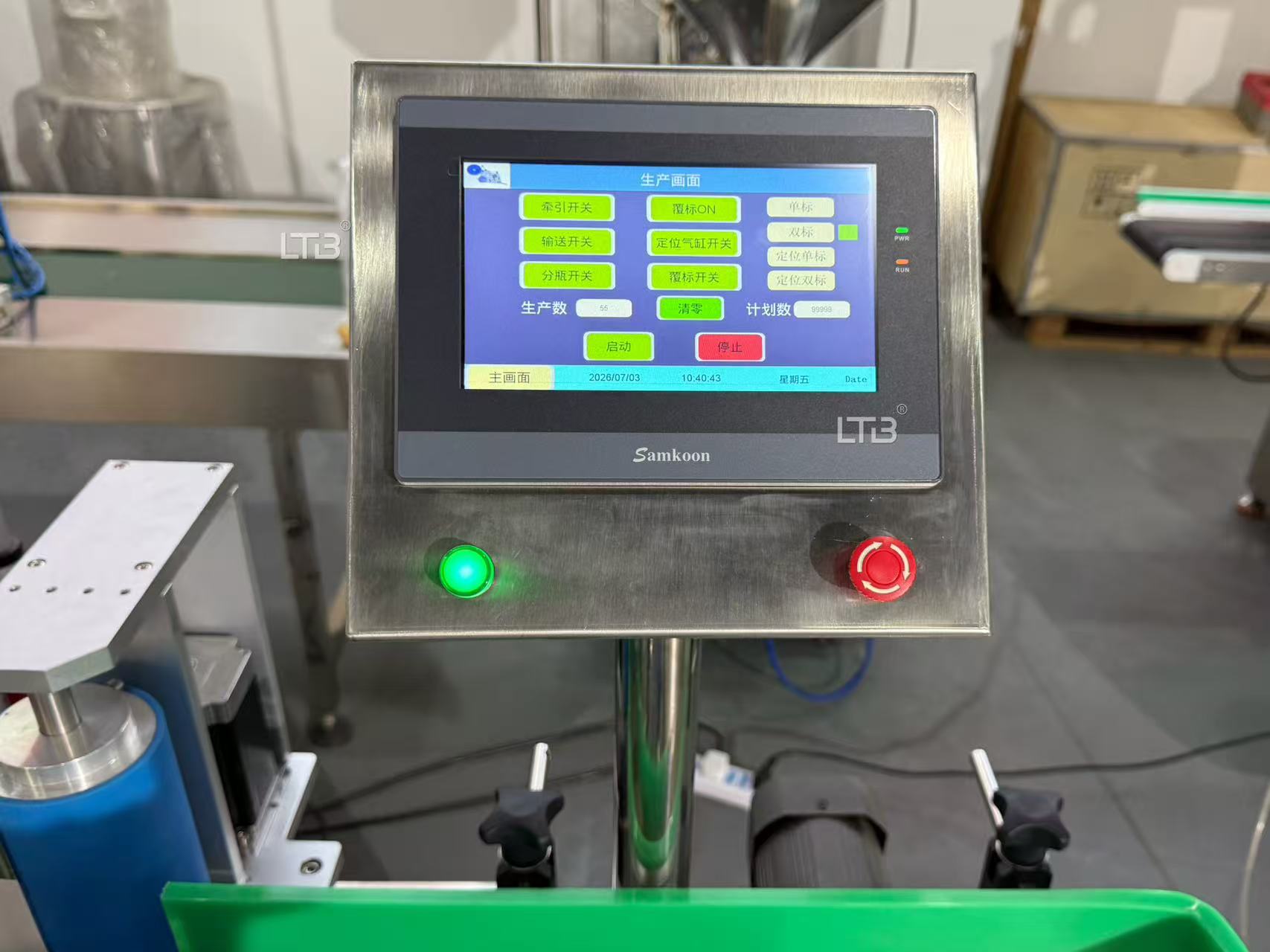

Touch Screen
This machine adopts touch screen control. Operators can adjust process parameters such as conveyor speed, label feeding speed, label length, feeding delay, label stop offset and sensor sensitivity on the HMI. It supports manual jog test. Functions include multi-language switching, fault alarm, auto-stop for missing bottles or labels. The system can be extended to connect coders and other peripheral devices with reliable parameter storage and stable operation.
Q: What is your company's history and experience in manufacturing cosmetics production machinery?
A: Our company has been in the cosmetics/chemical/pharmaceutical/food machinery manufacturing industry for more than 26 years. We've served numerous clients globally, providing customized solutions for various production scales, from small - batch handmade cosmetics to large - scale industrial production.
Q: Where are your manufacturing facilities located?
A: Our main manufacturing facilities are situated in Guangzhou and Jiangsu Province, China.
Product - Related
Q: Can your round bottle labeling machine apply labels to different cylindrical bottles of cosmetics, food and pharmaceuticals?
A: Yes, our round bottle labeling machine offers strong compatibility. With handwheel quick-adjust structure and adjustable parameters such as conveyor speed, labeling speed and feeding delay, it can handle various cylindrical bottles of different diameters and heights for cosmetics, food, pharmacy and daily chemicals.
Q: How do I ensure stable and consistent labeling results with your machine?
A: Our labeling machine adopts Siemens control system and precise sensor detection. The label sensor and object sensor work together to control label feeding accurately and avoid missing or repeated labeling. Controllable label tension ensures smooth feeding without deviation, helping achieve stable labeling quality.
Q: What is the labeling speed of your round bottle labeling equipment?
A: It varies depending on the specific model and bottle size. Our standard automatic round bottle labeling machine can reach up to 30 bottles per minute. The speed can be adjusted flexibly to meet both small-batch trial production and continuous mass production requirements.
Order and Delivery
Q: What is your minimum order quantity?
A: The minimum order quantity (MOQ) depends on the product. For standard models, the MOQ is usually 1 unit(s). However, for customized products, we can discuss and determine a suitable quantity based on your specific requirements.
Q: How long does it take to deliver the machines after placing an order?
A: For in - stock items, delivery can be arranged within 7 working days. For custom - made machinery, the production and delivery time typically range from 4 weeks to 2 months, depending on the complexity of the design and production process.
Q: What are your payment terms?
A: We usually accept payments through T/T (Telegraphic Transfer). For regular customers, we may also consider other payment methods after negotiation. A 40% deposit is required upon order confirmation, and the balance is due before shipment.
After - sales Service
Q: Do you provide installation and training services?
A: Yes, we offer on - site installation and training services for our customers. Our technicians will ensure that the machines are properly installed and operational. They will also train your staff on machine operation, maintenance, and basic troubleshooting.
Q: What is your warranty policy?
A: Our products come with a standard warranty of 1 year. During this period, we will repair or replace any defective parts free of charge, excluding damages caused by improper use or force majeure. We also provide long - term technical support and supply of spare parts.
