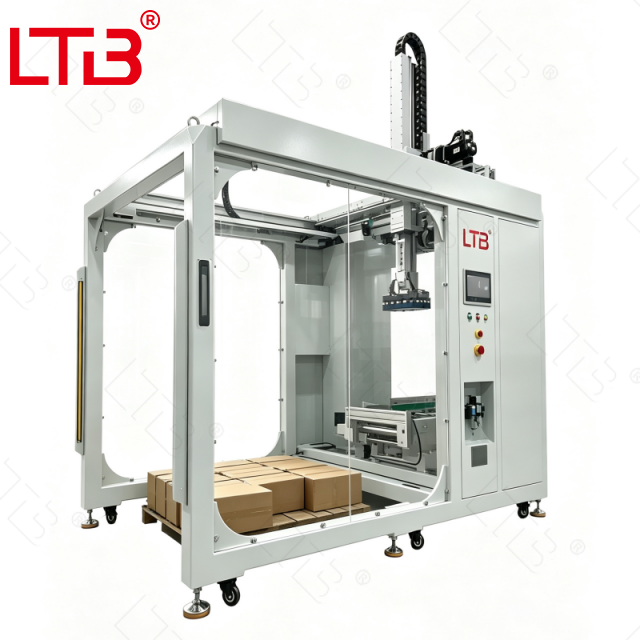

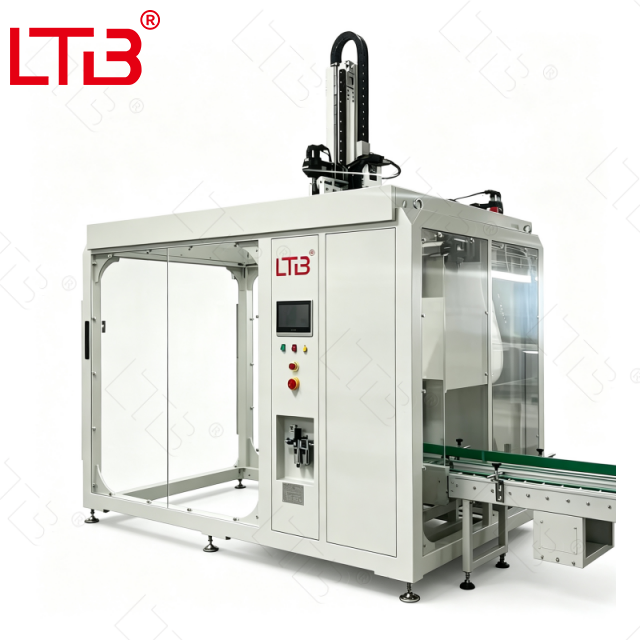

Automatic Carton Wooden Case Box Stacking Robot Palletizer End-of-Line Palletizing Packaging Machine

This automatic end-of-line palletizer is designed for carton stacking at the end of packaging lines. Cartons are fed into the machine via conveyor. Internal mechanical components arrange individual cartons into pre-set neat layers automatically. Once one layer is fully formed, the whole layer will be transferred and stacked onto the pallet layer by layer until the full pallet is completed.

The equipment minimizes manual carton handling, greatly boosts production throughput and maintains uniform palletizing quality. Integrated safety protection devices prevent accidental injury. This palletizer can work seamlessly with upstream conveyors and fits food, chemical, daily goods and other packaging production.

Model：
LTB-AF
Brand：
LTB

库存： 0

B2B does not have purchase function

Inquire

Add to Basket

PRODUCTS DESCRIPTION

Description

Advantages

Technical Parameters

FAQ

The core function of the carton palletizer is to automatically grab full carton layers and stack them onto pallets.

● Automated Palletizing Saves Labor

It automatically grabs and stacks cartons, replacing manual heavy handling and cutting labor costs effectively.

●Neat and Consistent Stack Formation

The vacuum gripper delivers precise positioning for each carton layer, creating regular stacks convenient for warehouse storage and transportation.

● Safe and Reliable Operation

Equipped with vacuum pressure monitoring for fault alarm, it prevents carton dropping and eliminates safety hazards of manual heavy lifting.

● Minimized Carton Damage

Flexible silicone suction cups distribute suction force evenly to avoid squeezing or scratching cartons and protect box appearance.

● Higher Line Throughput

It can connect seamlessly with upstream case packers for non-stop operation and boost the overall capacity of end packaging line.

Axes	3 basic axes (X, Y, Z) plus a 360° rotary axis.
Payload Weight	Max 45KG
Speed	6–8 cycles per minute
Power	6KW
Air Consumption	260 L/min
Voltage	220/380/400/415/480V (Customization)
Pressure	0.45-0.6Mpa
Pallet Size	1200 mm × 1200 mm

The suction gripper moves above the carton layer, and the blue silicone suction cups press against the top surfaces of cartons to grip the entire layer.

It translates the whole carton layer horizontally to the area above the pallet. Once reaching the designated palletizing position, the suction is released to drop the cartons and finish the placement.

The gripper then returns to its home position to repeat the cycle, stacking layer by layer until the pallet is fully loaded.

The palletizer precisely places the grabbed cartons onto the pallet. After one layer is fully placed, the gripper returns to the picking station to pick the next set of pre-arranged cartons and stack them on top of the previous layer. The machine repeats this operation, stacking layer by layer until the pallet reaches the preset total number of layers to finish full pallet palletizing.

Bottles, cans or jars are conveyed, collated and counted. After grouping, products are picked and placed into cartons by the manipulator to complete packing. Filled cartons are conveyed to the rear palletizer station. The vacuum suction gripper of the palletizer accurately places cartons onto the pallet until the pallet reaches the preset number of layers, finishing full pallet palletizing.

This integrated case packer and palletizer line automates product packing and carton palletizing. It replaces manual packing, carton handling and stacking to cut labor costs. It ensures stable and consistent packing and palletizing quality, avoiding miscounting, messy arrangement and irregular stack shapes caused by manual operations. It raises the automation level and throughput of the entire packaging line, suitable for end-of-line packaging of bottled and canned products in food, daily chemical and chemical industries.

Q: What is your company's history and experience in manufacturing cosmetics production machinery?

A: Our company has been in the cosmetics/chemical/pharmaceutical/food machinery manufacturing industry for more than 26 years. We've served numerous clients globally, providing customized solutions for various production scales, from small - batch handmade cosmetics to large - scale industrial production.

Q: Where are your manufacturing facilities located?

A: Our main manufacturing facilities are situated in Guangzhou and Jiangsu Province, China.

Product - Related

Q: What is the maximum load capacity of your carton palletizer?

A: The maximum weight of each carton layer depends on carton size and gripper configuration. Our model can handle a maximum item weight of 45 kg per carton.

Q: Can the palletizer work continuously with the upstream case packer?

A: Yes. The palletizer can seamlessly connect with the case packer via conveyor. Filled cartons are automatically transported to the palletizer station for uninterrupted automatic packing and palletizing, greatly improving overall line efficiency.

Q: How does the palletizer release the cartons accurately onto the pallet?

A: The palletizer uses a vacuum suction gripper. After moving to the target position above the pallet, release the entire carton layer gently and precisely.

Order and Delivery

Q: What is your minimum order quantity?

A: The minimum order quantity (MOQ) depends on the product. For standard models, the MOQ is usually 1 unit(s). However, for customized products, we can discuss and determine a suitable quantity based on your specific requirements.

Q: How long does it take to deliver the machines after placing an order?

A: For in - stock items, delivery can be arranged within 7 working days. For custom - made machinery, the production and delivery time typically range from 4 weeks to 2 months, depending on the complexity of the design and production process.

Q: What are your payment terms?

A: We usually accept payments through T/T (Telegraphic Transfer). For regular customers, we may also consider other payment methods after negotiation. A 40% deposit is required upon order confirmation, and the balance is due before shipment.

After - sales Service

Q: Do you provide installation and training services?

A: Yes, we offer on - site installation and training services for our customers. Our technicians will ensure that the machines are properly installed and operational. They will also train your staff on machine operation, maintenance, and basic troubleshooting.

Q: What is your warranty policy?

A: Our products come with a standard warranty of 1 year. During this period, we will repair or replace any defective parts free of charge, excluding damages caused by improper use or force majeure. We also provide long - term technical support and supply of spare parts.
