Designed for small - scale production of liquid wash products like shampoos and detergents.
● Stirring:
A powerful motor drives high - performance stirring. With adjustable speeds, it can thoroughly mix raw materials, from gentle blending to high - speed emulsification.
● Heating & Cooling:
Equipped with a temperature - control system, it can heat for solubilization or enzyme activation and cool to prevent over - reaction.
● Homogenization:
The unique impeller design and high - speed rotation promote effective homogenization, enhancing product texture, appearance, and performance.
PRODUCTS DESCRIPTION
Description
Advantages
Technical Parameters
| Effective Capacity | 25L | 50L | 100L | 200L | 300L | ||||
| Material | All product contact part are made of Stainless Steel 316L | ||||||||
| Tank Design | Three layers, double jackets/Single layer | ||||||||
| Heating Methods | Eelctric heating(or steam heating) | ||||||||
| Electric Heating Power | 3KW | 6KW | 9KW | 12KW | 18KW | ||||
| Mixing Design | Single way no-dead-angle mixing paddle with Teflon sraper | ||||||||
| Mixing Power | 0.55KW | 0.75KW | 1.1KW | 1.5KW | 2.2KW | ||||
| Mixing Speed | 0-63rpm, customizable | ||||||||
| Mixing Motor | ABB or SIEMENS | ||||||||
| Homogenizer Design | High speed homogenizer with good rolling and shearing effect | ||||||||
| Homogenizer Position | Bottom homogenizer | ||||||||
| Homogenizer Power | 1.5KW | 3KW | 4KW | 4KW | 5.5KW | ||||
| Homogenizer Speed | 0-2960rpm, customizable | ||||||||
| Homogenizer Motor | ABB or SIEMENS | ||||||||
| Cover Type | Half-open cover | ||||||||
| Control Way | SIEMENS PLC control system and touch screen/push button | ||||||||
| Customization | Weighing load cell/Electric lifting platform/Water flow meter/Water chiller/CIP system/Pump circulation/Vacuum | ||||||||

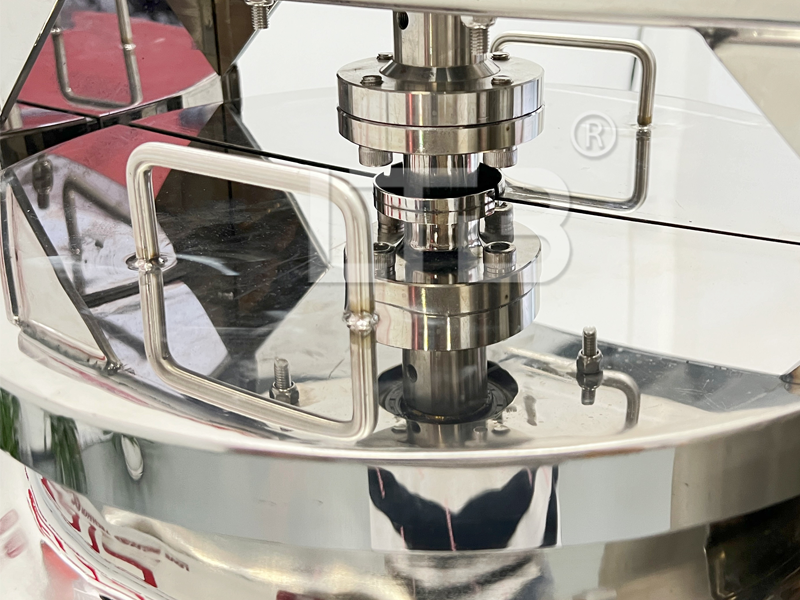

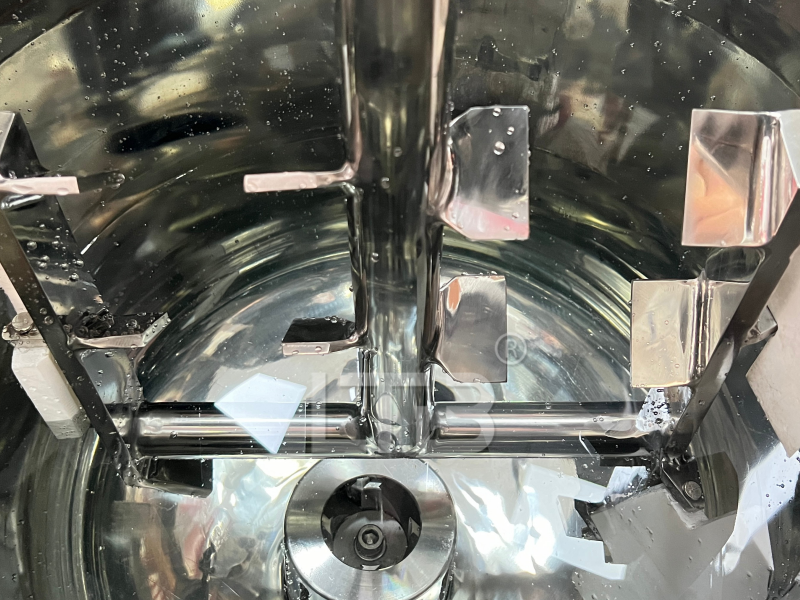

The seamless - welded stirring mechanism and homogenization system work in tandem, significantly enhancing the mixing effect. Our stirring pots feature seamless - welded impellers and homogenizing components. This seamless - welding technology not only ensures structural integrity but also enables a smooth operation. During the production process, the stirring impellers first create a strong circulation flow, while the homogenization system simultaneously breaks down particles and droplets. Their coordinated operation can thoroughly blend liquid detergent ingredients in a short time, achieving a more uniform product quality with no unmixed spots.
Our small scale liquid mixer are designed with a double - sided opening at the pot mouth, which offers distinct conveniences. During operation, workers can freely choose to open either side according to their position and preference. This makes adding ingredients and stirring much easier, significantly improving work efficiency.
Safety is also enhanced with this design. The double - sided opening allows workers to have better control over the pot mouth, reducing the risk of accidental splashes and potential injuries during operation.
Moreover, this design takes into account the practical needs of production. It provides more flexibility in operation, enabling workers to complete tasks more smoothly. In a word, the double - sided opening design optimizes the production process, making our stirring pots an excellent choice for liquid detergent production.

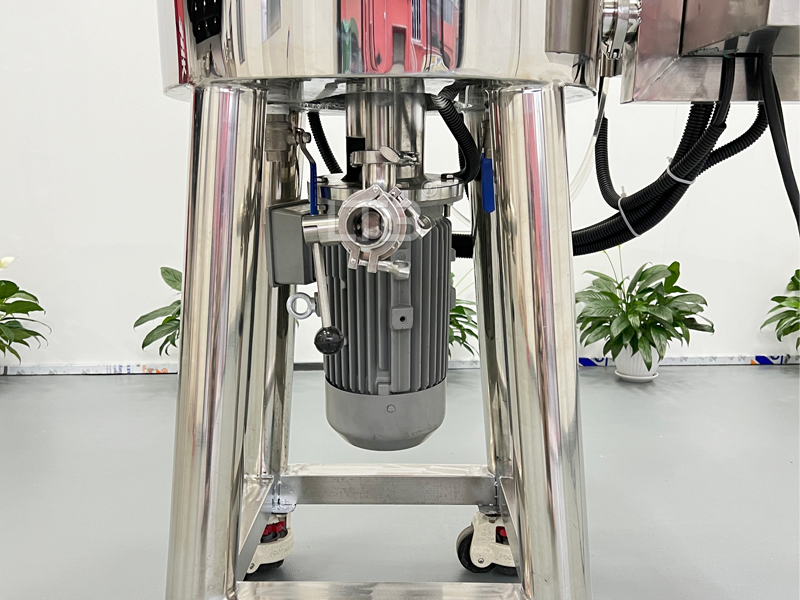

One of the remarkable advantages of our small stirring pots is the installation of caster wheels, often referred to as Fuma wheels. These wheels are engineered to offer outstanding mobility. Thanks to the caster wheels, effortlessly maneuvering the small stirring pot within the production area is achievable. Whether it's repositioning for maintenance, aligning with other production equipment, or simply changing the working location to meet production requirements, operators can easily move the pot. This convenience not only saves time but also enhances the overall flexibility of the production process. It allows for quick adjustments and optimizes the utilization of space in the production facility, making our small stirring pots an even more practical choice for liquid detergent production.
